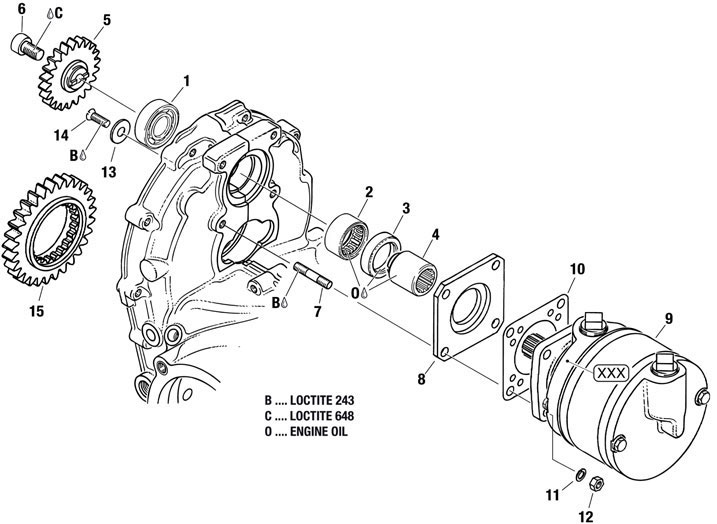

fig. 37-10-00
VACUUM PUMP WITH DRIVE For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 881690 | Vacuum Drive Kit | 1803200 | Add to Cart |
| 1 | 832363 | Ball Bearing 16002 | 560400 (1) | Add to Cart |
| 2 | 232925 | Needle Sleeve 22x28x12 | 20000 | Add to Cart |
| 3 | 831265 | Oil Seal As 22x32x7 | 27500 | Add to Cart |
| 4 | 847771 | Drive Sleeve | 829200 (1) | Add to Cart |
| 5 | 834245 | Vacuum Pump Gear 22 T., | 362500 | Add to Cart |
| 6 | 941527 | Allen Screw M8x14 | 2200 | Add to Cart |
| 7 | 941080 | Stud M6x20/10 | 4800 | Add to Cart |
| 8 | 810170 | Attachment Flange | 703300 | Add to Cart |
| 11 | 827962 | Washer 6,4 Din 125 | 300 | Add to Cart |
| 12 | 242214 | Hex.nut M6 | 300 (1) | Add to Cart |
| 13 | 227280 | Thrust Washer | 2900 | Add to Cart |
| 14 | 940316 | Countersunk Screw M5x12 | 720 | Add to Cart |
| 15 | 834233 | Drive Gear 29 T., | 104400 (1) | Add to Cart |
