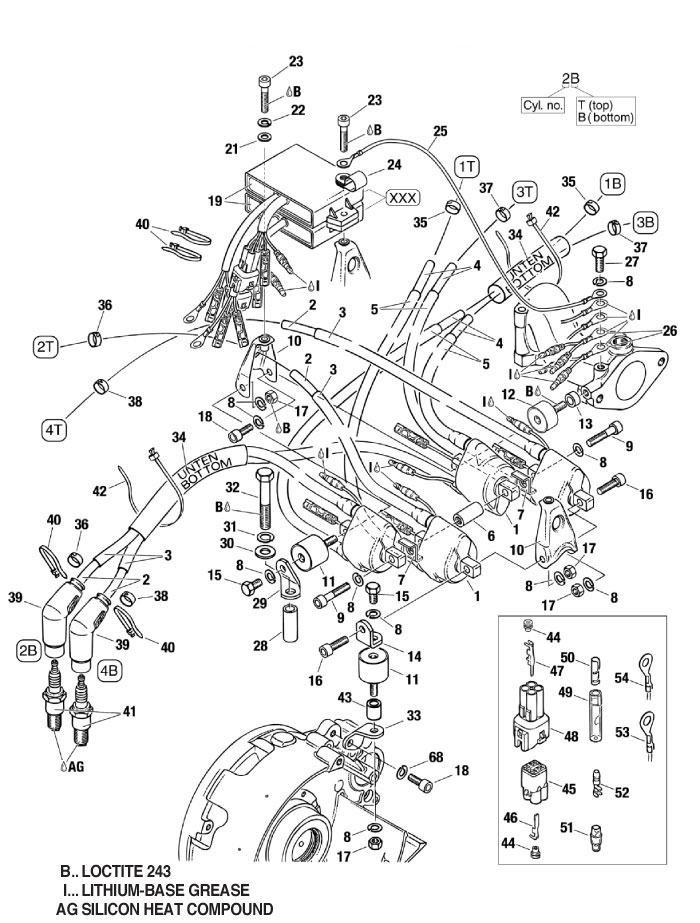

fig. 74-20-00-1
DOUBLE IGNITION COIL ASSY 912UL/914UL
(old version) For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-5- | 966215 | Double Ignition Coil Assy | 202100 | Add to Cart |
| 2 | 865711 | Ignition Cable (sold By The Meter) | 112300 | Add to Cart |
| 3 | 860991 | Protection Hose 8x1 | 85600 (1) | Add to Cart |
| 4 | 865711 | Ignition Cable (sold By The Meter) | 112300 | Add to Cart |
| 5 | 860991 | Protection Hose 8x1 | 85600 (1) | Add to Cart |
| 6- | 842740 | Distance Nut M6x24 | 25300 | Add to Cart |
| 6- | 842742 | Distance Nut M6x22,5 | 29400 | Add to Cart |
| 7 | 953390 | Separating Plate | 470 | Add to Cart |
| 8 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 9 | 840883 | Allen Screw M6x30 | 1500 | Add to Cart |
| 10 | 953127 | Ignition Coil Bracket Ass`y | 66800 | Add to Cart |
| 11 | 860710 | Rubber Buffer 25x20xm6 | 61700 | Add to Cart |
| 12 | 960060 | Rubber Buffer 25x15xm6 | 32100 | Add to Cart |
| 13 | 247700 | Spacer 6,4/10/5 | 1500 | Add to Cart |
| 14 | 851260 | Ignition Coil Bracket 1 | 20700 | Add to Cart |
| 15 | 240772 | Hex.screw M6x10 | 470 | Add to Cart |
| 16 | 241935 | Allen Screw M6x20 | 720 (1) | Add to Cart |
| 17 | 242214 | Hex.nut M6 | 300 (1) | Add to Cart |
| 18 | 241237 | Allen Screw M6x16 | 270 (1) | Add to Cart |
| 19 | 965446 | Smd - Elect. Module 912/914 Sv | 1186700 | Add to Cart |
| 21 | 827801 | Washer A 5,5 | 270 | Add to Cart |
| 22 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 23 | 240187 | Allen Screw M5x25 | 270 | Add to Cart |
| 24 | 851118 | Cable Clamp 11,3/m5 | 4600 | Add to Cart |
| 25 | 965788 | Mass Cable Assy., | 7000 | Add to Cart |
| 26 | 965781 | Mass Cable Assy., | 121200 | Add to Cart |
| 27 | 241187 | Hex.screw M6x16 | 270 (1) | Add to Cart |
| 28 | 847792 | Spacer 8,4/12/30 | 26400 | Add to Cart |
| 29 | 851266 | Bracket | 9200 | Add to Cart |
| 29 | 851481 | Ignition Coil Bracket 3 | 24200 | Add to Cart |
| 30 | 250315 | Washer 8,4 | 270 (1) | Add to Cart |
| 31 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 32 | 240281 | Hex. Screw M8x50 | 720 | Add to Cart |
| 32 | 440192 | Allen Screw M8x16 Din 912 | 720 | Add to Cart |
| 33 | 851267 | Bracket | 24200 | Add to Cart |
| 34 | 860734 | Glass Fiber-silicon Sheating 120 | 17100 | Add to Cart |
| 35 | 860741 | Marking Sleeve 1 | 990 | Add to Cart |
| 36 | 860742 | Marking Sleeve 2 | 990 | Add to Cart |
| 37 | 860743 | Marking Sleeve 3 | 990 | Add to Cart |
| 38 | 860744 | Marking Sleeve 4 | 990 | Add to Cart |
| 39 | 265249 | Spark Plug Connector | 114900 (1) | Add to Cart |
| 40 | 866710 | Clamp 142x2,5 Mm | 110 | Add to Cart |
| 41- | 897255 | Spark Plug Ngk Dcpr7e | 15000 | Add to Cart |
| 41- | 897257 | Spark Plug Nd X27-epr-u9 | 38900 (1) | Add to Cart |
| 41- | 297656 | Spark Plug 12 | 75900 | Add to Cart |
| 42 | 251920 | Clamp 279x3,6 Mm | 2900 | Add to Cart |
| 43 | 847701 | Spacer 6,5/10/11 | 15000 | Add to Cart |
| 44 | 260130 | Cable Grommet | 1200 | Add to Cart |
| 45 | 265260 | Connector Housing 4-pole | 7300 | Add to Cart |
| 46 | 265275 | Faston Connector | 2200 | Add to Cart |
| 47 | 265210 | Flat Pin Terminal | 1200 | Add to Cart |
| 48 | 265262 | Connector Housing 4-pole | 13500 | Add to Cart |
| 49 | 964072 | Insulation Sheath | 470 | Add to Cart |
| 50 | 964067 | Faston Connector 3,96 | 470 | Add to Cart |
| 51 | 964077 | Insulation Sheath | 4800 | Add to Cart |
| 52 | 964062 | Faston Connector 3,96 | 2000 | Add to Cart |
| 53 | 964059 | Cable Shoe M6 | 1200 | Add to Cart |
| 54 | 964055 | Cable Terminal M5 | 1800 | Add to Cart |
| 55 | 265269 | Connector Housing 6-pole | 19100 | Add to Cart |
| 56 | 265265 | Connector Housing 6-pole | 9700 | Add to Cart |
| 57 | 265204 | Single Pole Connector | 13100 | Add to Cart |
| 58 | 265207 | Connector Housing 1-pole | 8500 | Add to Cart |
| 59 | 960260 | Shrink Tube Coated | 183200 | Add to Cart |
| 60 | 960300 | Shrink Tube Coated 48/16 | 209800 | Add to Cart |
| 64 | 965784 | Mass Cable Assy. | 50900 | Add to Cart |
| 65 | 853125 | Connector Bracket | 95900 | Add to Cart |
| 66 | 260135 | Dummy Plug | 1200 | Add to Cart |
| 68 | 827962 | Washer 6,4 Din 125 | 300 (1) | Add to Cart |
| 69 | 866714 | Tie Wrap 142x3,2 Mm | 110 | Add to Cart |
