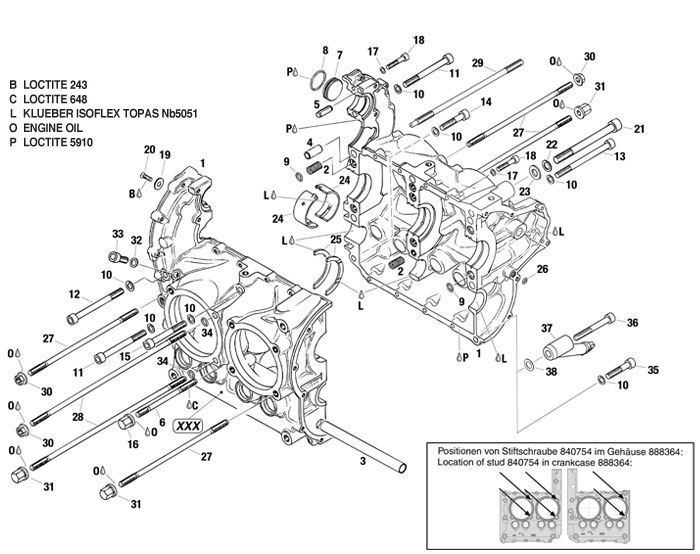

fig. 72-20-00-1

CRANKCASE
(up to crankcase S/N:27811) For ROTAX 914UL

Click on Number to order Part

Click here to see Your Cart
Fig. Part Number Description Unit/Price Add to Cart
6 840191 Stud M8x105 17800 Add to Cart
7 944222 Blinding Shim 28500 Add to Cart
8 430061 O-ring 26.7 X 1.8 1200 Add to Cart
10 945832 Lock Washer A8 270 Add to Cart
11 0 (1) Add to Cart
12 640932 Allen Screw M8x90 Din 912 4800 Add to Cart
13 440427 Allen Screw M8x100 Din 912 5400 Add to Cart
14 940071 Hex Screw M8 X 45 11100 Add to Cart
15 440406 M8 X 65 Collar Hex Screw 18400 Add to Cart
16 842476 Collar Cap Nut M8 50600 Add to Cart
17 827962 Washer 6,4 Din 125 300 Add to Cart
18 840887 Allen Screw M6x30 Din 912 1200 Add to Cart
19 227280 Thrust Washer 2900 Add to Cart
20 940316 Countersunk Screw M5x12 720 Add to Cart
21- 941487 Allen Screw M10x110 Din 912 6300 Add to Cart
21- 941557 Nla 0 Add to Cart
22 945833 Lock Washer A10 470 Add to Cart
23 927411 Washer 10,5 270 (1) Add to Cart
26 831929 O-ring 5x2 1200 Add to Cart
27 840752 Stud, M8 X 201 11100 Add to Cart
28 840757 Stud M8x291 15700 Add to Cart
29 840754 Stud M8x210 18400 Add to Cart
30 842610 Hex Nut M8 300 Add to Cart
31 842476 Collar Cap Nut M8 50600 Add to Cart
32 950141 Gasket Ring A 8x13 Din 7603 330 Add to Cart
33 240072 Allen Screw M8x20 720 Add to Cart
34 830415 O-ring 7x2 1800 Add to Cart
35 940071 Hex Screw M8 X 45 11100 Add to Cart
36 440107 Allen Screw M8x50 Din 912 2900 Add to Cart
37 953306 Manifold Bracket Assy. 539100 (1) Add to Cart
38- 926400 Washer 8,4/15/0,5 3900 Add to Cart
38- 926401 Washer 8,4/15/1 4400 Add to Cart
38- 926402 Washer 8,4/15/1,5 4600 Add to Cart
