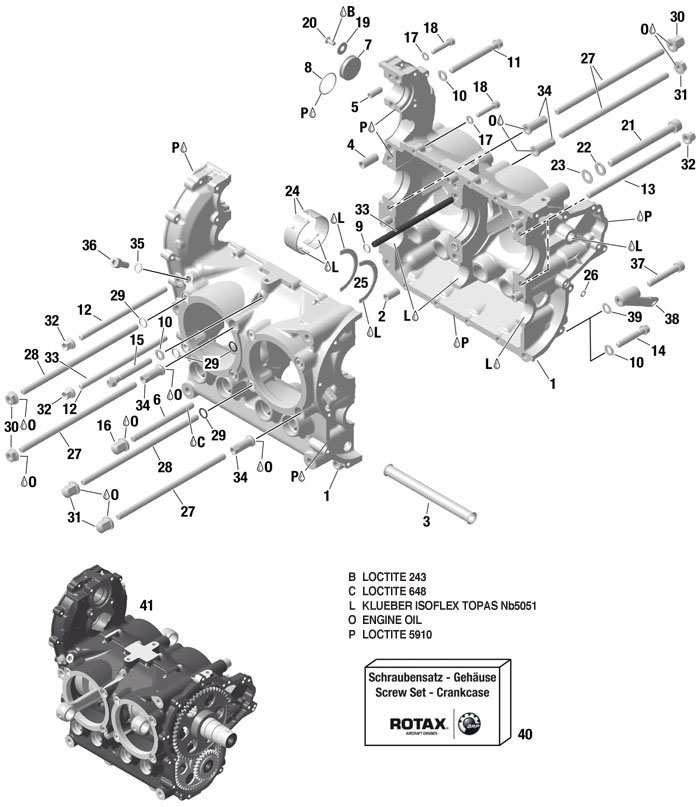

fig. 72-20-00-3
CRANKCASE
(from crankase S/N: 14.0000) For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 6 | 840191 | Stud M8x105 | 17800 | Add to Cart |
| 7 | 944222 | Blinding Shim | 28500 | Add to Cart |
| 8 | 430061 | O-ring 26.7 X 1.8 | 1200 | Add to Cart |
| 10 | 944131 | Washer 8 Mm | 990 | Add to Cart |
| 11 | 840062 | Alen M8x80 | 9700 (1) | Add to Cart |
| 12 | 840092 | Stud M8 X 1 X 153 | 25900 | Add to Cart |
| 13 | 840102 | Stud M8 X 1 X 163 | 33300 | Add to Cart |
| 14 | 940071 | Hex Screw M8 X 45 | 11100 | Add to Cart |
| 15 | 440406 | M8 X 65 Collar Hex Screw | 18400 | Add to Cart |
| 16 | 842476 | Collar Cap Nut M8 | 50600 | Add to Cart |
| 17 | 827962 | Washer 6,4 Din 125 | 300 | Add to Cart |
| 18 | 840887 | Allen Screw M6x30 Din 912 | 1200 | Add to Cart |
| 19 | 227280 | Thrust Washer | 2900 | Add to Cart |
| 20 | 940316 | Countersunk Screw M5x12 | 720 | Add to Cart |
| 21- | 941487 | Allen Screw M10x110 Din 912 | 6300 | Add to Cart |
| 21- | 941557 | Nla | 0 | Add to Cart |
| 22 | 945833 | Lock Washer A10 | 470 | Add to Cart |
| 23 | 927411 | Washer 10,5 | 270 (1) | Add to Cart |
| 26 | 831929 | O-ring 5x2 | 1200 | Add to Cart |
| 27 | 840141 | Stud M8 X 186 | 16400 | Add to Cart |
| 28 | 840171 | Stud M8 X 200 | 16900 | Add to Cart |
| 29 | 431570 | O-ring 10,82x1.78-n | 470 | Add to Cart |
| 30 | 842610 | Hex Nut M8 | 300 | Add to Cart |
| 31 | 842476 | Collar Cap Nut M8 | 50600 | Add to Cart |
| 32 | 842860 | Collar Hex. Nut M8 X 1 | 34000 | Add to Cart |
| 33 | 840132 | Stud M8 X 1 X 139 | 27800 | Add to Cart |
| 34 | 929117 | Thread Sleeve M8x1 + M8 | 62600 | Add to Cart |
| 35 | 950141 | Gasket Ring A 8x13 Din 7603 | 330 | Add to Cart |
| 36 | 240072 | Allen Screw M8x20 | 720 | Add to Cart |
| 37 | 440107 | Allen Screw M8x50 Din 912 | 2900 | Add to Cart |
| 38 | 953306 | Manifold Bracket Assy. | 539100 (1) | Add to Cart |
| 39- | 926400 | Washer 8,4/15/0,5 | 3900 | Add to Cart |
| 39- | 926401 | Washer 8,4/15/1 | 4400 | Add to Cart |
| 39- | 926402 | Washer 8,4/15/1,5 | 4600 | Add to Cart |
| 40 | 881120 | Crank Bolt Kit From 06.0010 | 1081900 | Add to Cart |
