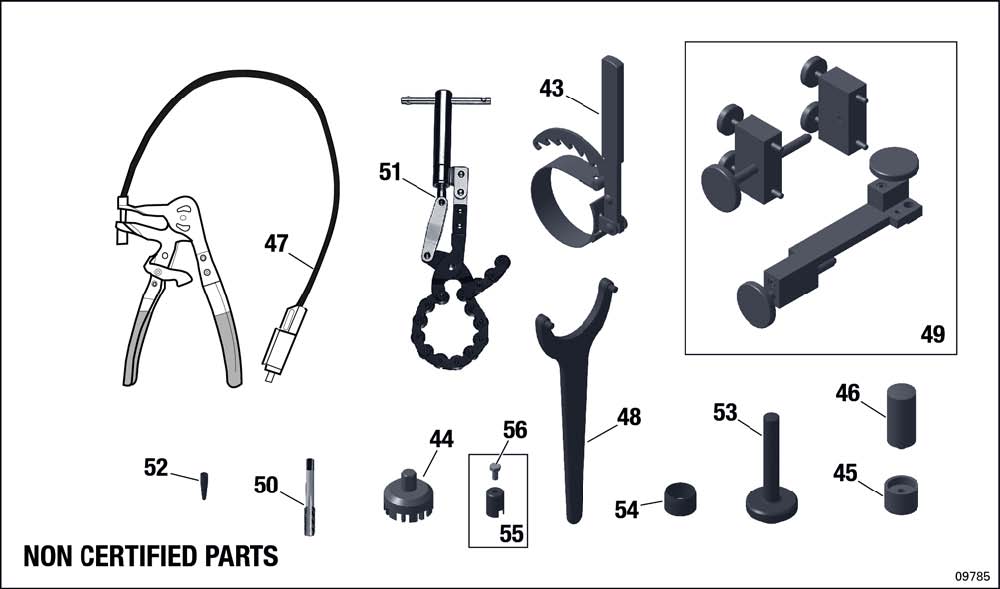

fig. 00-00-13
TOOLS P13 09785 For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 43 | 877620 | Oil Filter Wrench | 169700 | Add to Cart |
| 44 | 877295 | Impeller Wrench Assy., | 218000 | Add to Cart |
| 45 | 877258 | Press In Jig | 380500 | Add to Cart |
| 46 | 876510 | Insertion Jig | 117500 | Add to Cart |
| 47 | 877840 | Spring Clamp Pliers | 755400 | Add to Cart |
| 48 | 877390 | Nut Spanner A90 | 131800 | Add to Cart |
| 49 | 877766 | Case Splitting Tool | 3436300 | Add to Cart |
| 50 | 877570 | Tapping Drill,m18x1 | 471200 | Add to Cart |
| 51 | 877670 | Cutting Tool | 870900 | Add to Cart |
| 52 | 877110 | Guide Sleeve | 524700 | Add to Cart |
| 53 | 877270 | Insertion Jig Assy., | 195000 | Add to Cart |
| 54 | 877360 | Guide Sleeve | 58200 | Add to Cart |
| 55-56 | 877730 | Float Level Gauge Assy | 232300 | Add to Cart |
| 56 | 240382 | Hex. Screw M6x12 | 270 (1) | Add to Cart |
