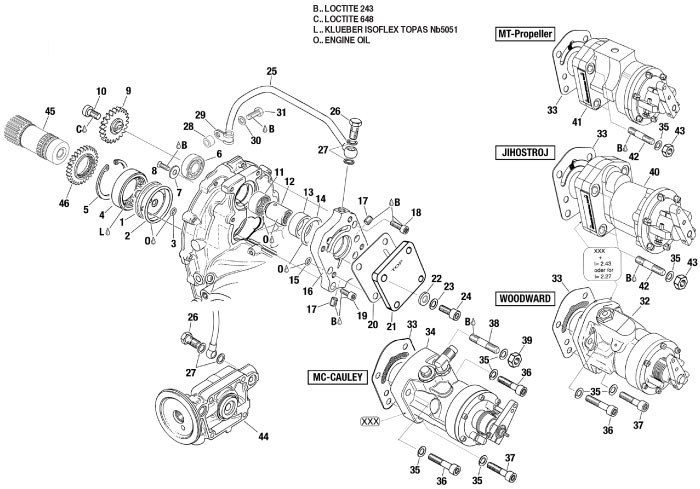

fig. 61-20-00
HYDR. GOVERNOR ARRANGEMENT FOR CONSTANT SPEED PROPELLER For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 810301 | Oil Inlet Flange | 602600 | Add to Cart |
| 2 | 430175 | O-ring 46x3 | 5800 | Add to Cart |
| 3 | 830415 | O-ring 7x2 | 1800 | Add to Cart |
| 4 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | 221400 (1) | Add to Cart |
| 5 | 945820 | Retaining Ring 52x2 | 2700 | Add to Cart |
| 6 | 832363 | Ball Bearing 16002 | 560400 (1) | Add to Cart |
| 7 | 227280 | Thrust Washer | 2900 | Add to Cart |
| 8 | 940316 | Countersunk Screw M5x12 | 720 | Add to Cart |
| 9 | 834245 | Vacuum Pump Gear 22 T., | 362500 | Add to Cart |
| 10 | 941522 | Allen Screw M8x16 | 1200 (1) | Add to Cart |
| 11 | 232925 | Needle Sleeve 22x28x12 | 20000 | Add to Cart |
| 12 | 847773 | Drive Sleeve | 830900 | Add to Cart |
| 13 | 847802 | Spacer 25/31,95/13 | 118300 | Add to Cart |
| 14 | 950380 | O-ring 32x4 | 6800 | Add to Cart |
| 15 | 830415 | O-ring 7x2 | 1800 | Add to Cart |
| 16 | 810294 | Govenor Flange | 953800 | Add to Cart |
| 17 | 941611 | Screw Plug M8x1 | 5600 | Add to Cart |
| 18 | 241935 | Allen Screw M6x20 | 720 (1) | Add to Cart |
| 19 | 241237 | Allen Screw M6x16 | 270 (1) | Add to Cart |
| 20 | 931770 | Gasket | 9200 | Add to Cart |
| 21 | 926231 | Cover | 295600 | Add to Cart |
| 22 | 250315 | Washer 8,4 | 270 (1) | Add to Cart |
| 23 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 24 | 240072 | Allen Screw M8x20 | 720 | Add to Cart |
| 25 | 956460 | Pressure Oil Line Assy., | 522900 | Add to Cart |
| 26 | 241073 | Banjo Bolt M10x1x19 | 56900 (1) | Add to Cart |
| 27 | 230150 | Gasket Ring 10x14 A Din 7603 | 230 | Add to Cart |
| 28 | 847223 | Distance Sleeve 84/15/6 | 79100 | Add to Cart |
| 29 | 853418 | Cable Clamp | 32300 | Add to Cart |
| 30 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 31 | 240277 | Hex. Screw M8x25 | 720 | Add to Cart |
| 33 | 931372 | Gasket | 530900 | Add to Cart |
| 35 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 37 | 841594 | Allen Screw M8x35 | 1800 (1) | Add to Cart |
| 38 | 940301 | No Longer Available | 0 | Add to Cart |
| 39 | 942674 | Hex. Nut M8 (ws 11mm) | 5800 | Add to Cart |
| 42 | 840711 | Stud M8 X 21 | 50200 | Add to Cart |
| 43 | 942674 | Hex. Nut M8 (ws 11mm) | 5800 | Add to Cart |
| 44 | 911815 | Oil Pump Housing Assy., | 1034900 | Add to Cart |
| 46 | 834233 | Drive Gear 29 T., | 104400 (1) | Add to Cart |
| 0 | Add to Cart |
