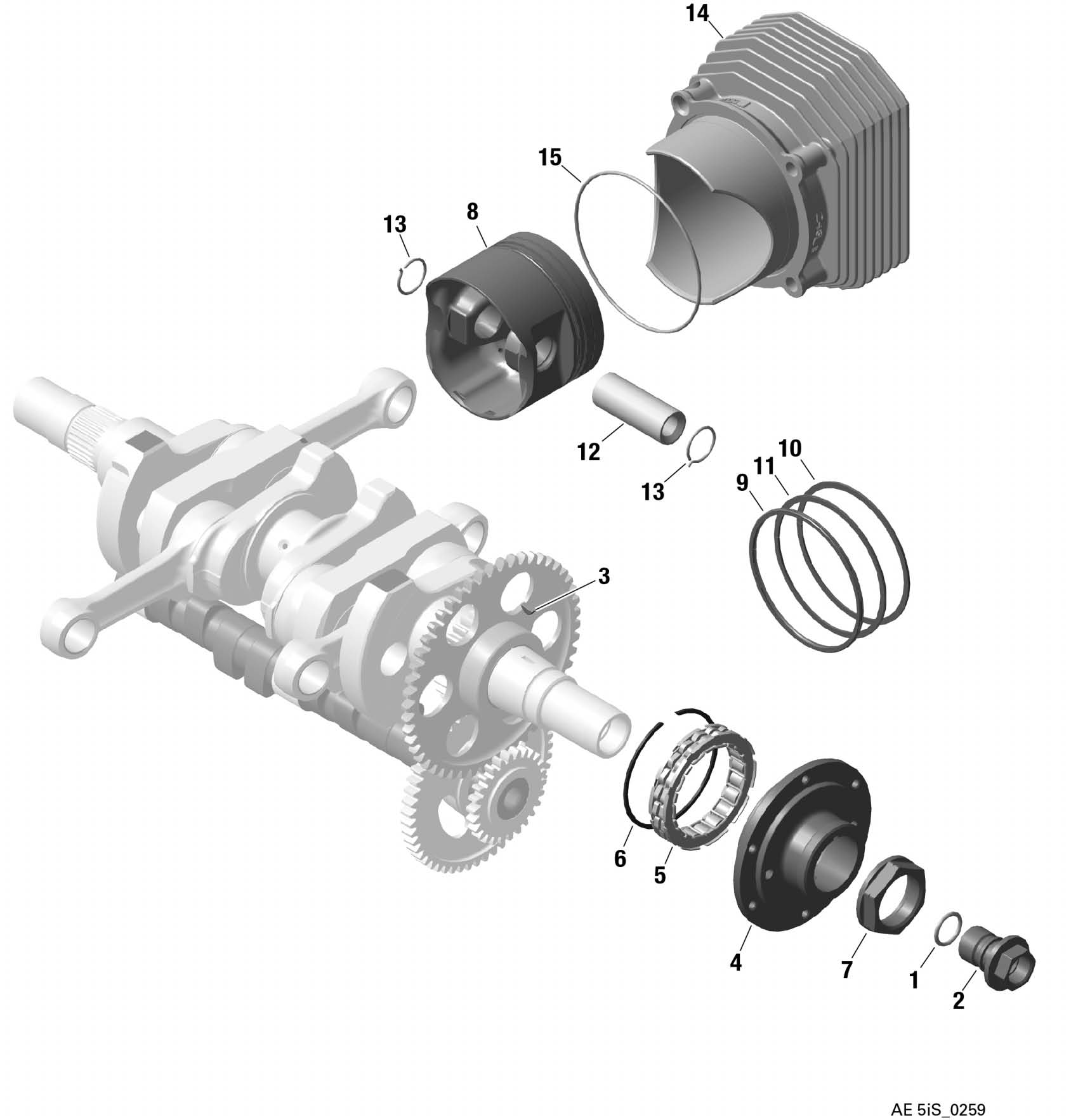

fig. 72-20-00-b
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 430225 | O-ring 15,9-2,3 | 2300 | Add to Cart |
| 2 | 940526 | Plug Screw M20x1,5 | 370800 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 3700 | Add to Cart |
| 4 | 852407 | Sprag Clutch Housing | 512500 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 439900 | Add to Cart |
| 6 | 845425 | Circlip 70 | 10100 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 137900 | Add to Cart |
| 8 | 0 | Add to Cart | ||
| 9 | 815230 | Oil Scraper Ring | 86200 | Add to Cart |
| 10 | 815257 | Rectangular Ring 84/77x1,5 | 111900 | Add to Cart |
| 11 | 815280 | Tapered Compression Ring | 58600 | Add to Cart |
| 12 | 916380 | Piston Pin 20x12x51,3 | 292700 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 6200 | Add to Cart |
| 14 | 913228 | 913 228 Use 913 228-1 Or 913 228-2 | 0 | Add to Cart |
| 15 | 250510 | O-ring 87x2 | 11800 | Add to Cart |
