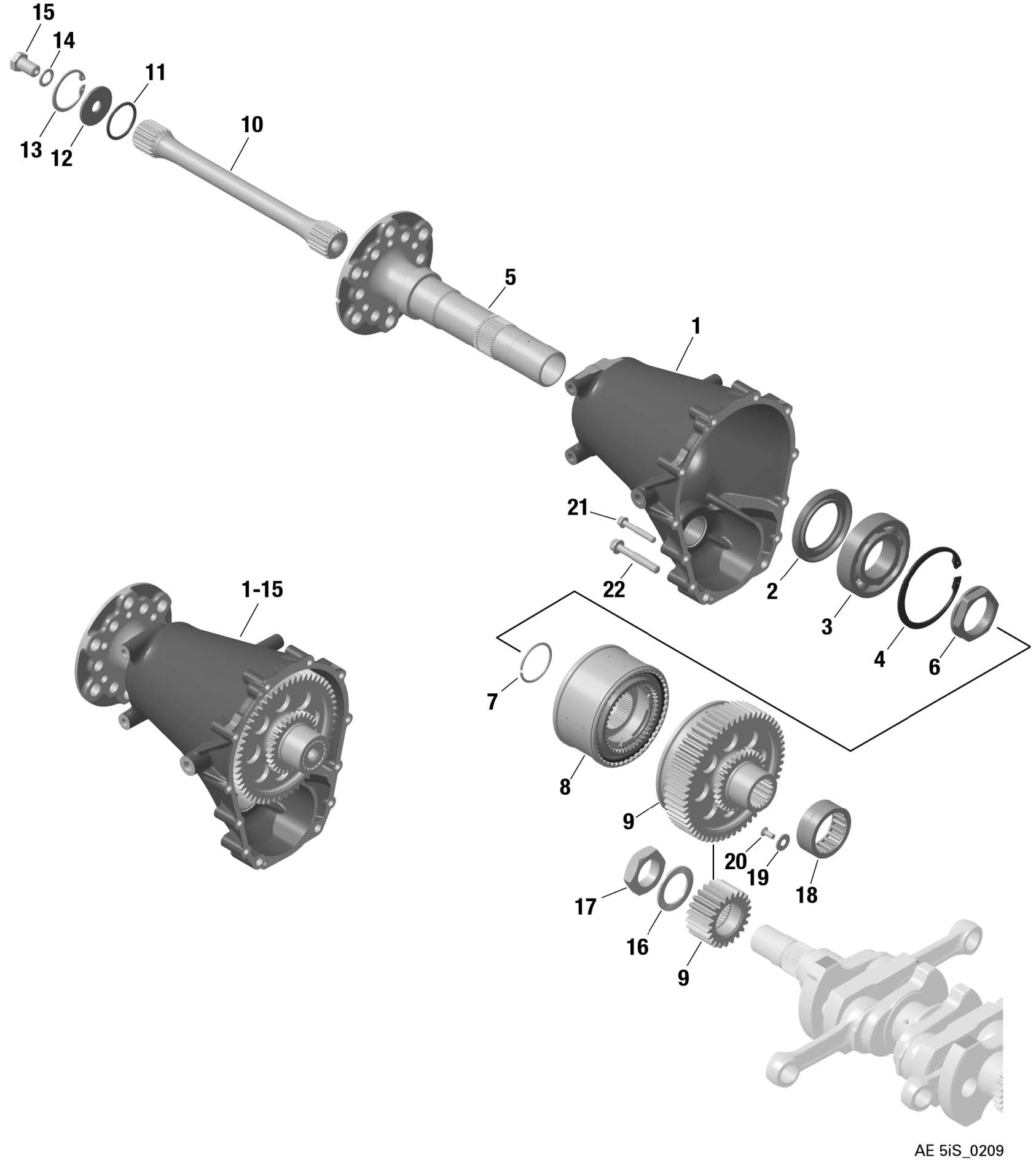

fig. 72-10-00-a

PROPELLER GEAR ASSY. For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-15 0 Add to Cart
1 911286 Gearbox Housing Assy. 1783000 (1) Add to Cart
2 950091 Oil Seal As 48x72x8 Fkm 44100 Add to Cart
3 832062 Ball Bearing 6208 Tn9 C3 793200 (1) Add to Cart
4 845121 Retaining Ring 80x2.85 50700 (1) Add to Cart
5 837225 Propeller Shaft 4396100 (1) Add to Cart
6 942320 Collar Nut M40x1.5 Lh 104000 Add to Cart
7 245935 Retaining Ring A 38 3600 Add to Cart
8 958419 Damping Clutch Assy 6650100 (1) Add to Cart
9 0 (1) Add to Cart
10 0 (1) Add to Cart
11 230915 O-ring Din 3771-33x3-n 23200 Add to Cart
12 827470 Sealing Washer 40x12,1x2x5) 27300 Add to Cart
13 945880 Retaining Ring 40x1,75 2800 Add to Cart
14 250646 Gasket A 12x18-cu Din 7603 430 (1) Add to Cart
15 841150 Hex Screw M12 X 20 A2-70 46700 Add to Cart
16 845431 Friction Washer Vs30 8800 Add to Cart
17 842579 Hex. Nut M30x1.5 12mm, Lh 64700 Add to Cart
18 0 Add to Cart
19 0 Add to Cart
20 0 Add to Cart
21 440282 Sk/torx-flange Screw M6x40-sw8/t30 970 Add to Cart
22 940077 Hex / Torx Flange Screw M8x45-sw10/t40 3300 Add to Cart
