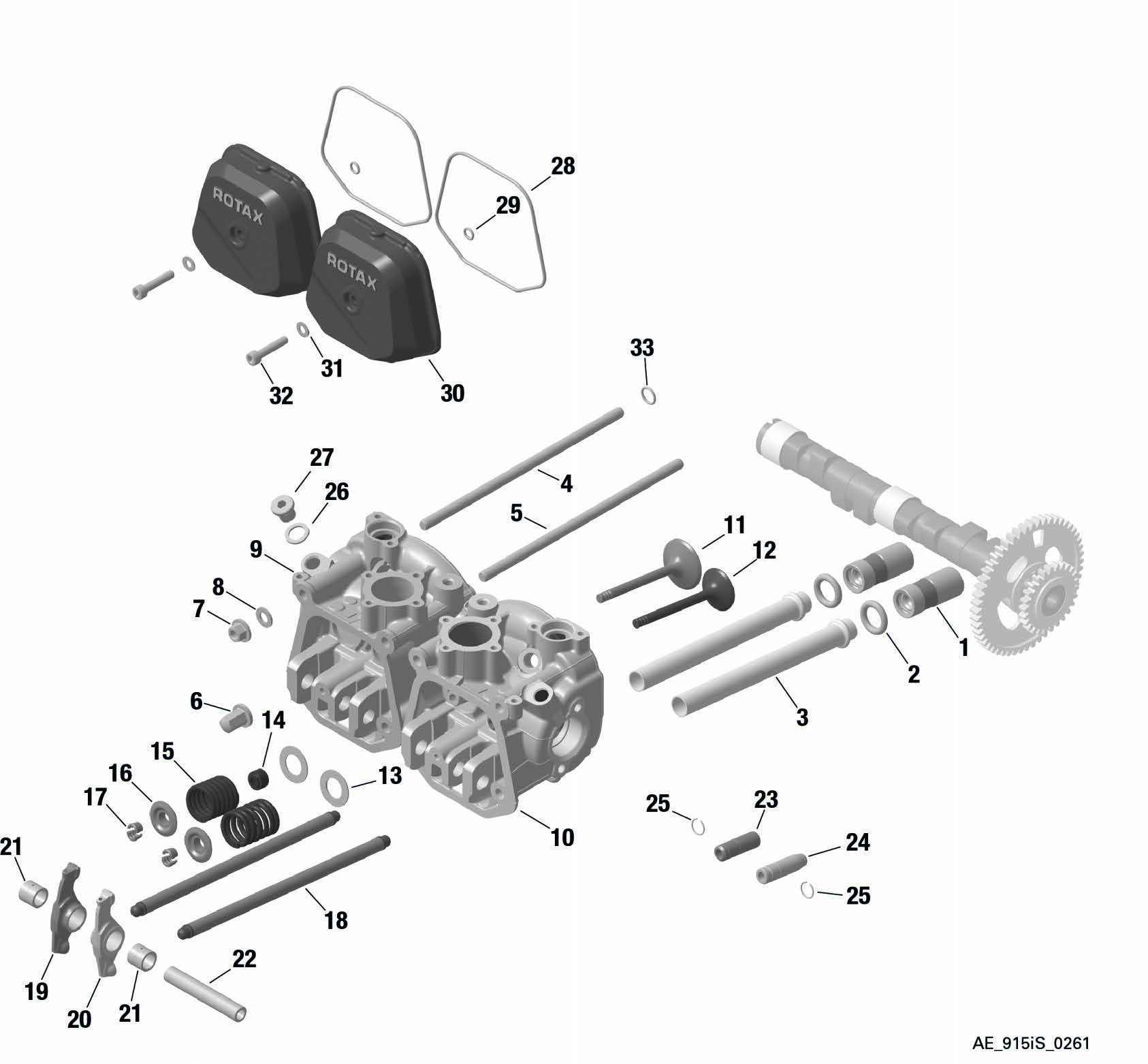

fig. 72-20-00-c
CAMSHAFT, VALVE TRAIN, CYLINDER HEAD, VALVE COVER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 881832 | Hydraulic Valve Tappet Set | 3014100 | Add to Cart |
| 2 | 850930 | O-ring 16x5 | 3600 | Add to Cart |
| 3 | 924440 | Oil Return Tube | 16100 | Add to Cart |
| 4 | 840171 | Stud M8 X 200 | 16600 | Add to Cart |
| 5 | 840141 | Stud M8 X 186 | 16100 | Add to Cart |
| 6 | 842476 | Collar Cap Nut M8 | 49800 | Add to Cart |
| 7 | 942302 | Hex. Nut M8 | 63000 | Add to Cart |
| 8 | 250315 | Washer 8,4 | 270 (1) | Add to Cart |
| 9 | 623779 | Cylinderhead 2/3 Assy. | 4203200 (1) | Add to Cart |
| 10 | 623789 | Cylinderhead 1/4 Assy. | 4313600 (1) | Add to Cart |
| 11 | 854101 | Intake Valve 38mm | 156500 | Add to Cart |
| 12 | 854585 | Exhaust Valve 32mm | 0 (1) | Add to Cart |
| 13 | 926210 | Shim 16/27.4/1 | 1900 | Add to Cart |
| 14 | 230810 | Valve Stem Seal | 5700 | Add to Cart |
| 15 | 838156 | Valve Spring | 23000 | Add to Cart |
| 16 | 854188 | Valve Spring Retainer | 56200 (1) | Add to Cart |
| 17 | 253092 | Valve Cotter | 4000 | Add to Cart |
| 18 | 854862 | Valve Push-rod Assy., | 173600 (1) | Add to Cart |
| 19 | 854387 | Rocker Arm Left | 481100 (1) | Add to Cart |
| 20 | 854397 | Rocker Arm Right | 481100 (1) | Add to Cart |
| 21 | 933396 | Bushing Vespel | 101900 | Add to Cart |
| 22 | 854193 | Rocker Arm Shaft | 64200 | Add to Cart |
| 23 | 854225 | Valve Guide | 155100 | Add to Cart |
| 24 | 253114 | Inlet Valve Guide | 20900 | Add to Cart |
| 25 | 245440 | Retaining Ring A12 Din 7999 | 460 | Add to Cart |
| 26 | 250015 | Sealing Ring A12x18 Din 7603 | 430 | Add to Cart |
| 27 | 841923 | Plug Screw M12x1,5 Din 908 | 10400 | Add to Cart |
| 28 | 250285 | O-ring 105x2,5 | 11900 | Add to Cart |
| 29 | 430205 | O-ring 6,4x1,8 | 460 | Add to Cart |
| 30 | 612265 | Valve Cover Sky Blue | 145400 | Add to Cart |
| 31 | 927941 | Washer 6,0/12/1 | 270 | Add to Cart |
| 32 | 840887 | Allen Screw M6x30 Din 912 | 1200 | Add to Cart |
| 33 | 431570 | O-ring 10,82x1.78-n | 460 | Add to Cart |
