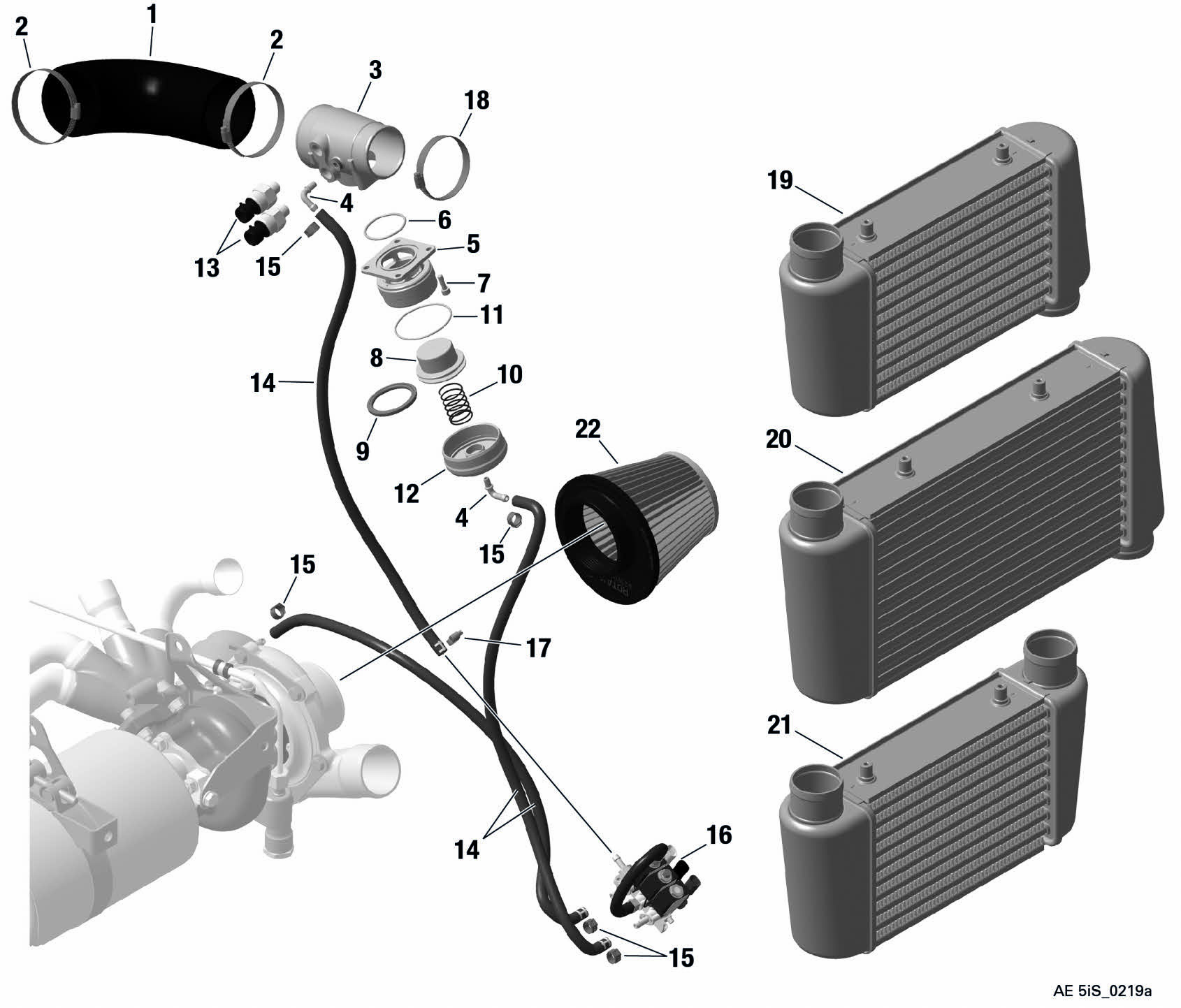

fig. 73-10-00-b
INTERCOOLER, WASTEGATE For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 0 | Add to Cart | ||
| 2 | 951791 | Clamp 50-70 | 10200 | Add to Cart |
| 3 | 947781 | Reduction Sleeve | 575400 | Add to Cart |
| 4 | 0 | Add to Cart | ||
| 5 | 812382 | Valve Housing | 345100 | Add to Cart |
| 6 | 431740 | O-ring Din 3771-38x2.4-n, Viton Glt 70 | 16400 | Add to Cart |
| 7 | 840514 | Allen Screw M5x16 | 320 | Add to Cart |
| 8 | 0 | Add to Cart | ||
| 9 | 0 | Add to Cart | ||
| 10 | 838372 | Compression Spring Dm22 D1.5 L50 | 74300 | Add to Cart |
| 11 | 450390 | O Ring Din 3771-54x2-n, Fpm | 5600 | Add to Cart |
| 12 | 812391 | Valve Cover | 223800 | Add to Cart |
| 13 | 664364 | Pressure Sensor 2,0 | 1467200 | Add to Cart |
| 14 | 874339 | Control Hose 670 Mm | 307500 | Add to Cart |
| 15 | 851468 | Clamp 10.3 - 12.8 | 4900 | Add to Cart |
| 16 | 664638 | 664 638 Use 664 639 | 0 | Add to Cart |
| 17 | 951898 | Clamp 7-11 | 17200 | Add to Cart |
| 18 | 853381 | Clamp 40-60 | 13000 | Add to Cart |
| 19 | 888962 | Intercooler Opposite In-out Ports | 1493900 | Add to Cart |
| 20 | 888963 | Intercooler Large - Opposite In/out Ports | 2003900 | Add to Cart |
| 21 | 888965 | Intercooler In-out Port Same Side | 1494900 | Add to Cart |
| 22 | 825900 | Air Filter | 245100 | Add to Cart |
