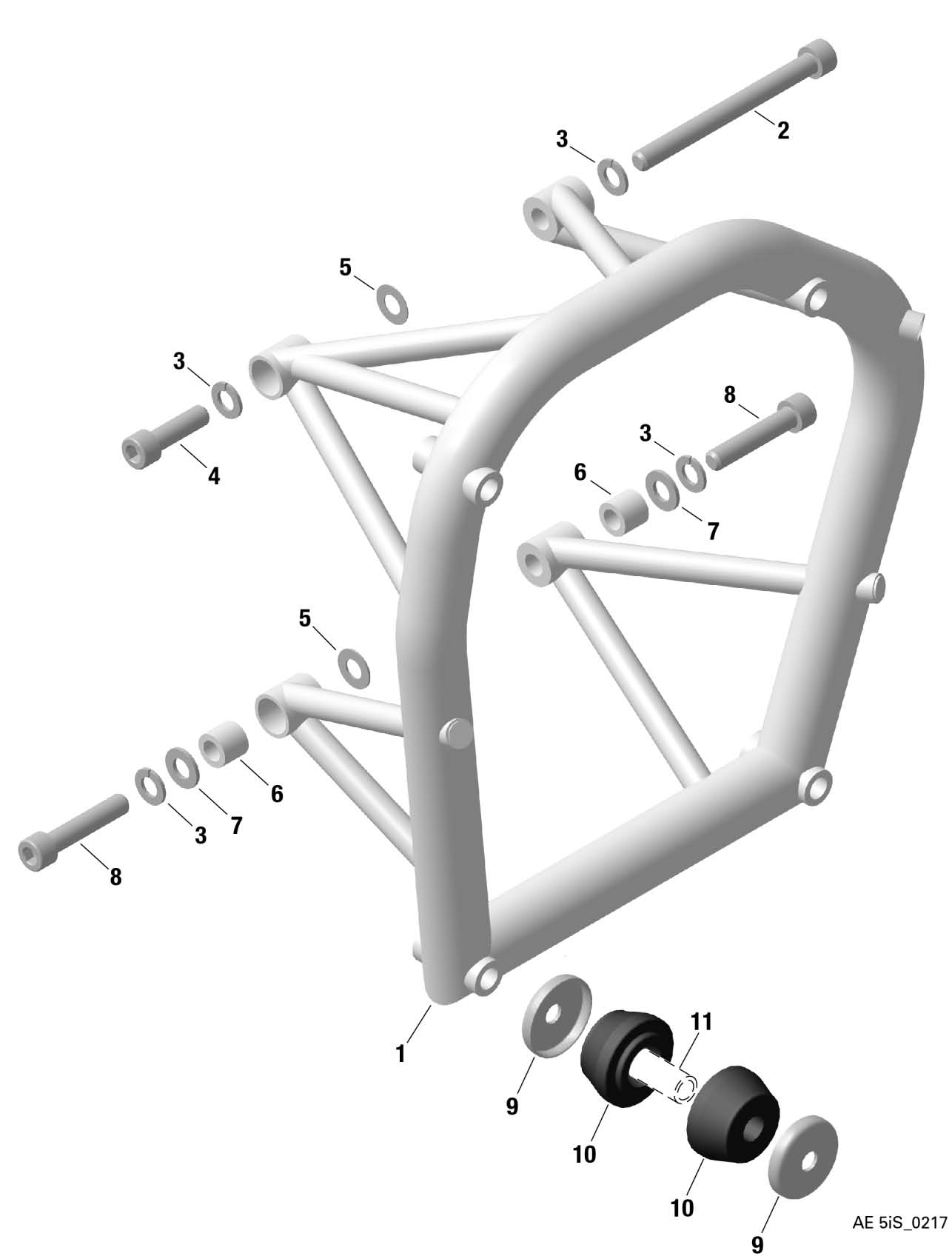

fig. 71-20-00
ENGINE SUSPENSION FRAME For ROTAX 915IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886563 | Engine Suspension Frame | 4597500 | Add to Cart |
| 2 | 941487 | Allen Screw M10x110 Din 912 | 12600 | Add to Cart |
| 3 | 945833 | Lock Washer A10 | 680 | Add to Cart |
| 4 | 840948 | Allen Screw M10x35 Din 912 | 3400 | Add to Cart |
| 5 | 927952 | Thrust Washer 10,1/20/0,5 | 11600 | Add to Cart |
| 5 | 927953 | Thrust Washer 10,1/20/1,0 | 12600 | Add to Cart |
| 6 | 847841 | Spacer 10,5/17/15 | 59600 | Add to Cart |
| 7 | 927411 | Washer 10,5 | 320 | Add to Cart |
| 8 | 0 | Add to Cart | ||
| 9-10 | 860695 | Shock Mount Set | 3597300 | Add to Cart |
| 9 | 944240 | Cup Washer | 466100 | Add to Cart |
| 10 | 860690 | Shock Mount | 223000 | Add to Cart |
| 11 | 0 | Add to Cart | ||
| 0 | Add to Cart |
Showing 1 to 14 of 14 entries
