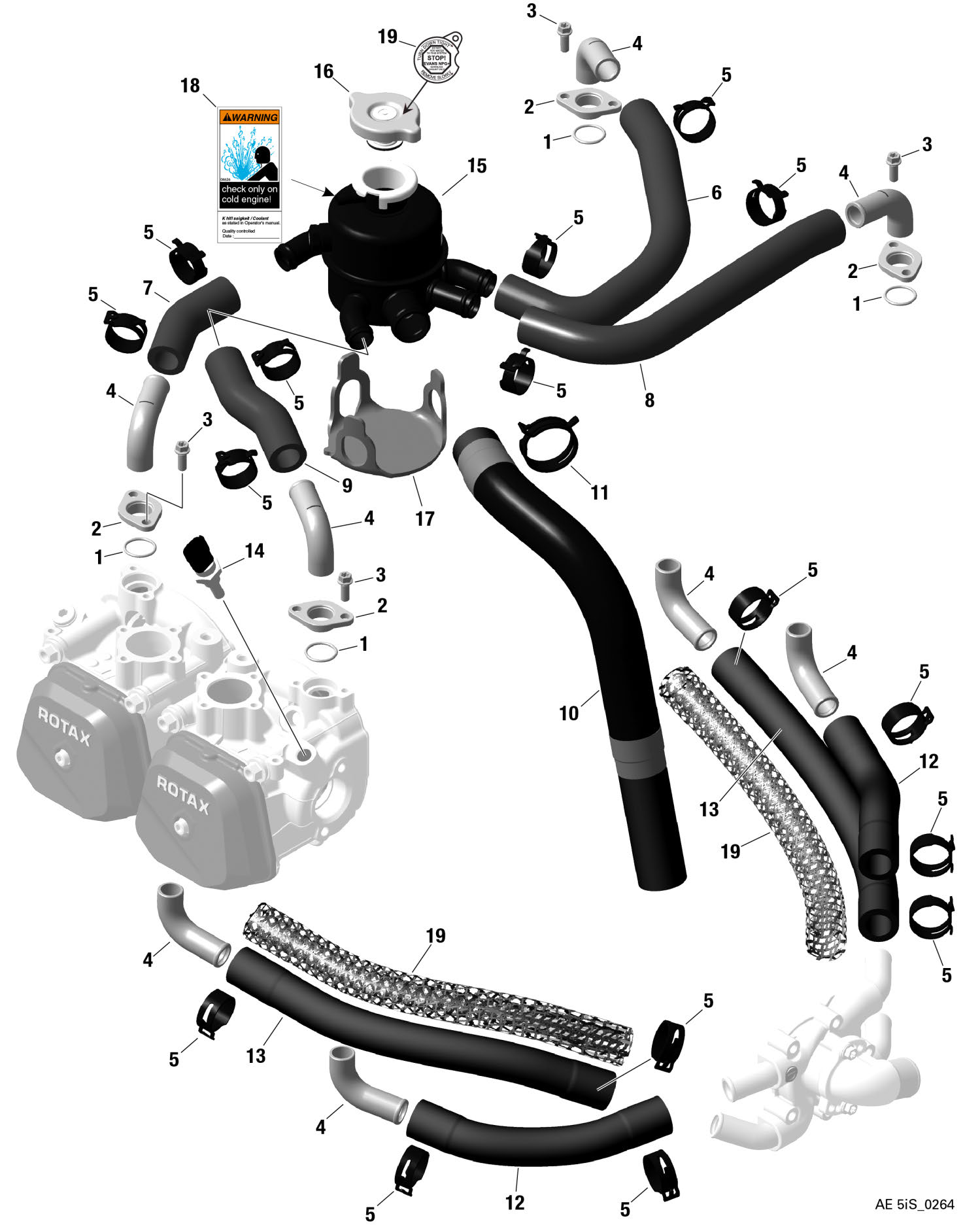

fig. 75-20-00-b
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 950180 | O-ring 19-2 | 970 | Add to Cart |
| 2 | 922303 | Flange | 31300 | Add to Cart |
| 3 | 440162 | Hex. Torx-flange Screw M6x16-sw8/t30 | 460 | Add to Cart |
| 4 | 922236 | Bent Socket 80 Degrees | 39100 (1) | Add to Cart |
| 5 | 851645 | Spring Type Clamp 25 | 2900 | Add to Cart |
| 6 | 822423 | Form Hose 1 | 191800 (1) | Add to Cart |
| 6 | 822420 | Form Hose 1 | 40800 | Add to Cart |
| 7 | 822433 | Form Hose 2 | 101600 (1) | Add to Cart |
| 7 | 822430 | Form Hose 2 | 9300 | Add to Cart |
| 8 | 822443 | Form Hose 3 | 168800 (1) | Add to Cart |
| 8 | 822440 | Form Hose 3 | 39400 | Add to Cart |
| 9 | 822448 | Form Hose 4 | 94800 (1) | Add to Cart |
| 9 | 822445 | Form Hose 4 | 19700 | Add to Cart |
| 10 | 822450 | Form Hose | 81500 | Add to Cart |
| 10 | 822454 | Form Hose | 291000 (1) | Add to Cart |
| 11 | 951350 | Self Compensating Clamp 35 | 8800 | Add to Cart |
| 12 | 922368 | Water Tube 180mm /- 3mm | 136400 (1) | Add to Cart |
| 12 | 922360 | 180 Mm Hose | 30300 | Add to Cart |
| 13 | 922369 | Water Tube 280mm /- 3mm | 191800 (1) | Add to Cart |
| 13 | 922362 | 280 Mm Hose | 55900 | Add to Cart |
| 14 | 965537 | Temperature Sensor | 455700 | Add to Cart |
| 15-18 | 922668 | Expansion Tank | 582400 (1) | Add to Cart |
| 16 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 52900 | Add to Cart |
| 17 | 860828 | Rubber Plate | 39100 (1) | Add to Cart |
| 18 | 897506 | Warning Label | 6000 | Add to Cart |
| 19 | 860650 | Protection Tube (heat Resistant) | 460000 | Add to Cart |
