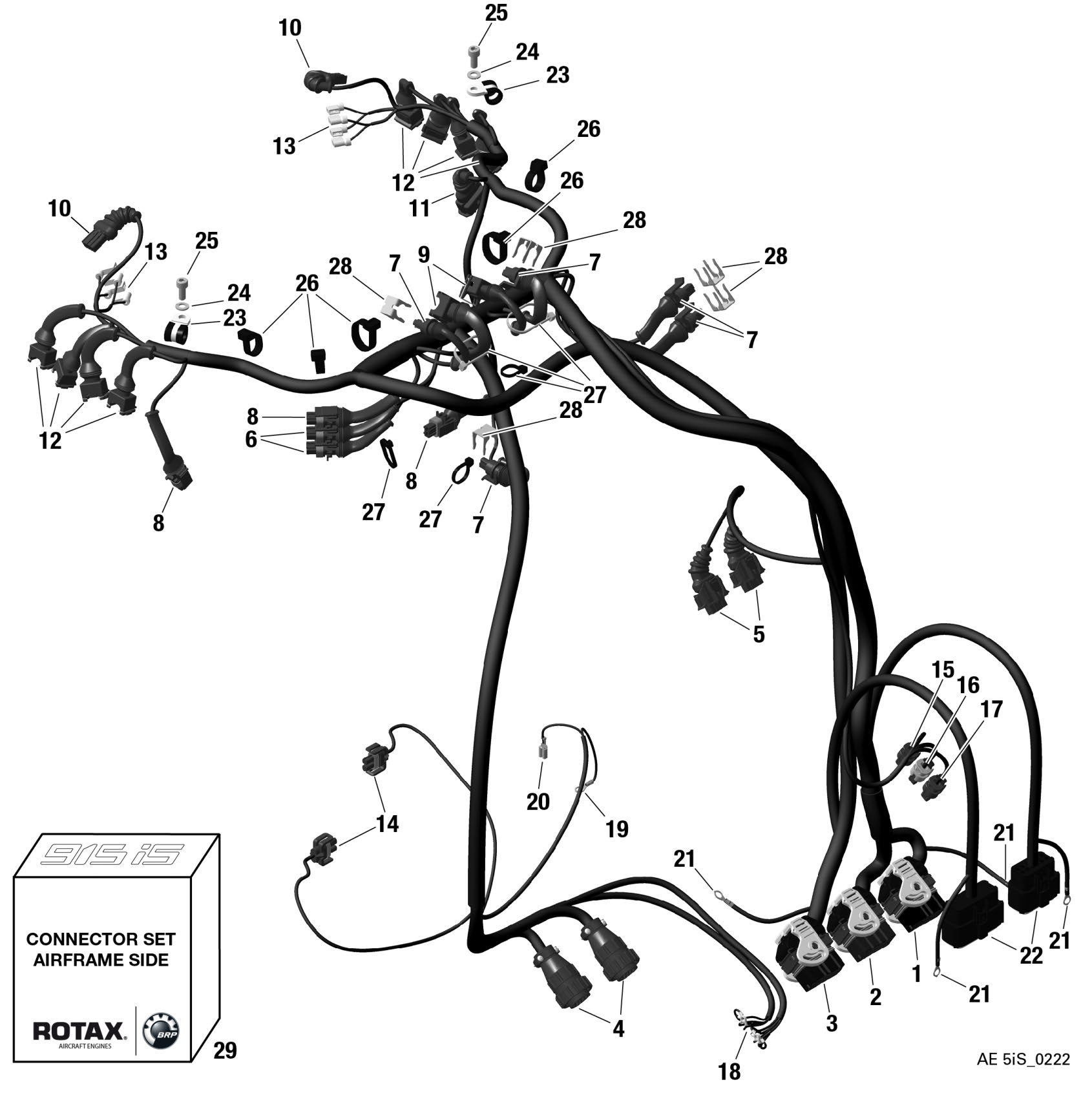

fig. 76-50-00
WIRING HARNESS For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-21 | 665586 | Wire Harness | 6127400 (1) | Add to Cart |
| 1 | 0 | Add to Cart | ||
| 2 | 0 | Add to Cart | ||
| 3 | 0 | Add to Cart | ||
| 4 | 881312 | Connector Set Fuse Box | 408200 | Add to Cart |
| 5 | 881306 | Connector Set Aapts | 90500 | Add to Cart |
| 6 | 881298 | Connector Set Cps | 78700 | Add to Cart |
| 7 | 881302 | Connector Set | 126000 | Add to Cart |
| 8 | 881296 | Connector Set Cts A Ots A Knock | 187300 | Add to Cart |
| 9 | 881292 | Connector Set Mats | 93100 | Add to Cart |
| 10 | 481455 | Conntector Set Egt | 608900 | Add to Cart |
| 11 | 881308 | Connector Set Tps | 113400 | Add to Cart |
| 12 | 881300 | Connector Set Inj | 59400 | Add to Cart |
| 13 | 881310 | Connector Set Ignition Coil | 96900 | Add to Cart |
| 14 | 881304 | Connector Set Fuel Pump | 149200 | Add to Cart |
| 15 | 481452 | Connector Set Pcv A | 555700 | Add to Cart |
| 16 | 481453 | Connector Set Pcv B | 562300 | Add to Cart |
| 17 | 481454 | Connector Set Pcv C | 555700 | Add to Cart |
| 18 | 0 | Add to Cart | ||
| 19 | 964059 | Cable Shoe M6 | 1200 | Add to Cart |
| 20 | 864011 | Faston Connector 6,3x0,8 | 1500 | Add to Cart |
| 21 | 966057 | Ring Terminal P8-14r-q | 5500 | Add to Cart |
| 22 | 881294 | Connector Set Hic A And Hic B | 491800 | Add to Cart |
| 23 | 251692 | Cable Clamp 12/m6 | 8300 (1) | Add to Cart |
| 24 | 827962 | Washer 6,4 Din 125 | 300 (1) | Add to Cart |
| 25 | 840392 | Allen Screw M6x14 Din 912 | 710 (1) | Add to Cart |
| 26 | 866716 | Clamp | 650 | Add to Cart |
| 27 | 866714 | Tie Wrap 142x3,2 Mm | 110 | Add to Cart |
| 28 | 638140 | Clamp Map Sensor | 79000 | Add to Cart |
| 29 | 881240 | Connector Set | 1021200 | Add to Cart |
| 0 | Add to Cart |
