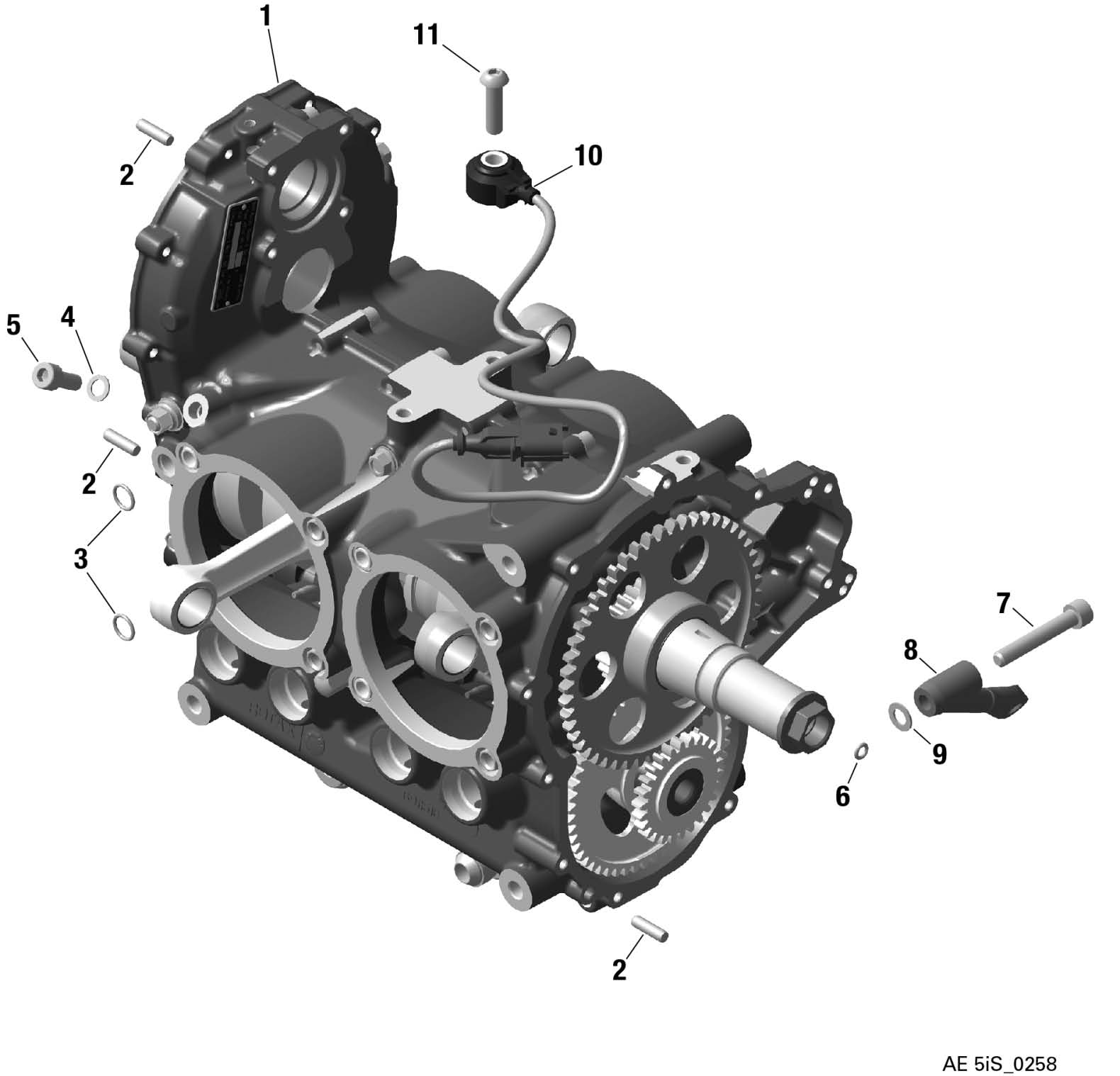

fig. 72-20-00-a
CRANKCASE For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 300091501 | Engine Block 915is | 28729700 | Add to Cart |
| 2 | 429230 | Dowel 6x20 | 470 | Add to Cart |
| 3 | 431570 | O-ring 10,82x1.78-n | 470 | Add to Cart |
| 4 | 950141 | Gasket Ring A 8x13 Din 7603 | 330 | Add to Cart |
| 5 | 240072 | Allen Screw M8x20 | 720 (1) | Add to Cart |
| 6 | 831929 | O-ring 5x2 | 1200 | Add to Cart |
| 7 | 0 | Add to Cart | ||
| 8 | 0 | Add to Cart | ||
| 9 | 0 | Add to Cart | ||
| 10 | 866270 | Knock Sensor | 613700 | Add to Cart |
| 11 | 570661 | Lens Head Screw Iso 7380-m8x30-8.8 | 1200 | Add to Cart |
