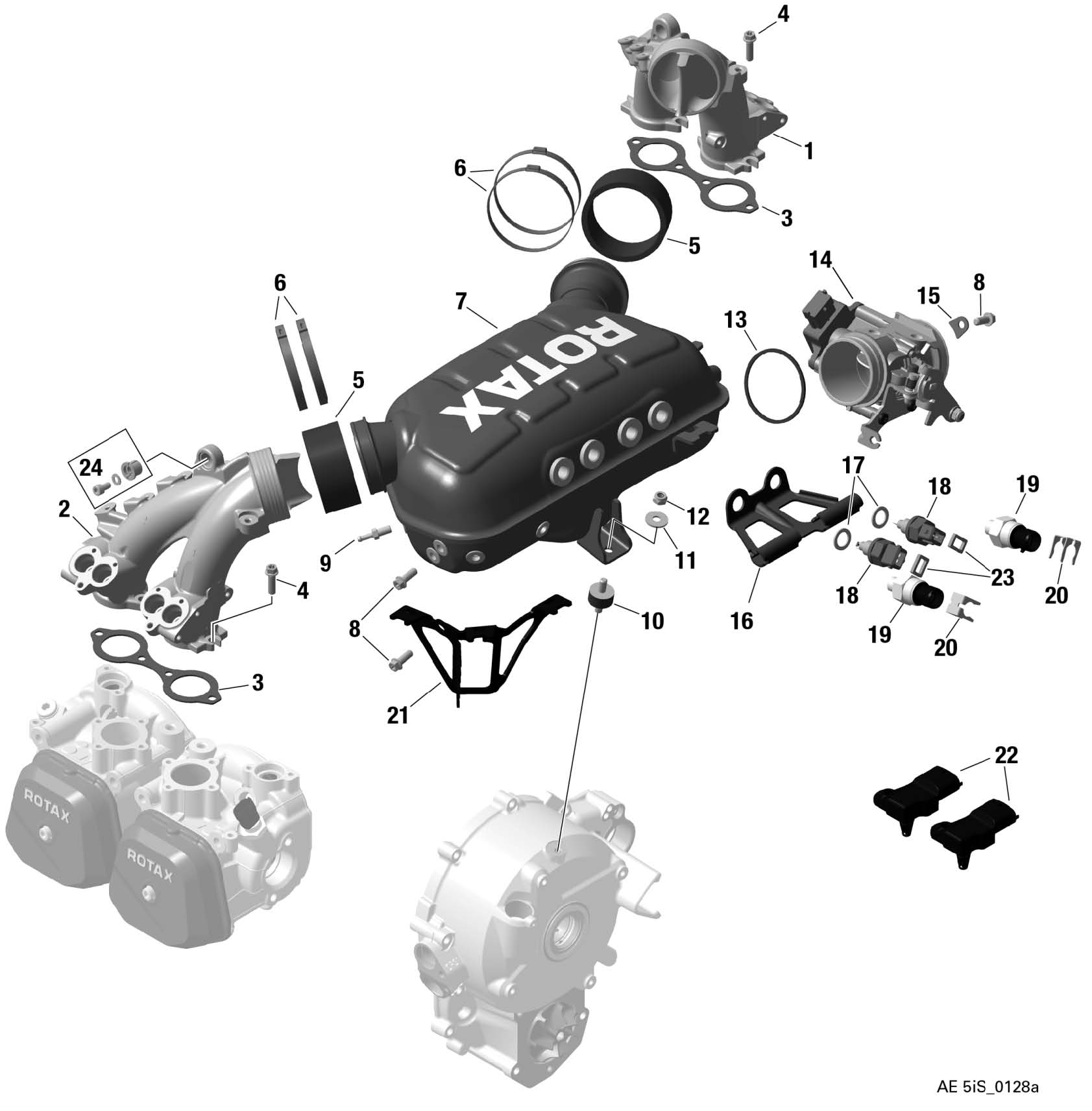

fig. 73-10-00
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667403 | Intake Manifold 1/3 | 0 (1) | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 736700 | Add to Cart |
| 3 | 850091 | Isolating Flange | 14200 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 720 | Add to Cart |
| 5 | 460421 | Connecting Socket | 20000 | Add to Cart |
| 6 | 953093 | Clamp 66-69 Mm | 7700 | Add to Cart |
| 7 | 667411 | Airbox | 3550500 | Add to Cart |
| 8 | 440164 | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | 1200 | Add to Cart |
| 9 | 840672 | Hose Nipple M6 | 88700 | Add to Cart |
| 10 | 860700 | Rubber 20x10xm6 | 14500 | Add to Cart |
| 11 | 827968 | Washer 6,4 Din 9021 | 300 | Add to Cart |
| 12 | 842042 | Lock Nut M6 | 530 | Add to Cart |
| 13 | 850020 | Rubber Ring | 6600 | Add to Cart |
| 14 | 685056 | Throttle Body Socket Assy. | 1145700 (1) | Add to Cart |
| 15 | 953020 | Separating Plate | 1500 | Add to Cart |
| 16 | 651780 | Connectory Bracket | 91500 | Add to Cart |
| 17 | 250015 | Sealing Ring A12x18 Din 7603 | 440 | Add to Cart |
| 18 | 222421 | Temperature Sensor | 101500 | Add to Cart |
| 19 | 664364 | Pressure Sensor 2,0 | 1008400 | Add to Cart |
| 20 | 638140 | Clamp Map Sensor | 80300 | Add to Cart |
| 21 | 951563 | Connector Bracket | 110300 | Add to Cart |
| 22 | 874654 | Pressure-/temp. Sensor | 725900 | Add to Cart |
| 23 | 850610 | Connetor Gasket | 12600 | Add to Cart |
| 24 | 481485 | Governor Cable Kit | 797500 | Add to Cart |
