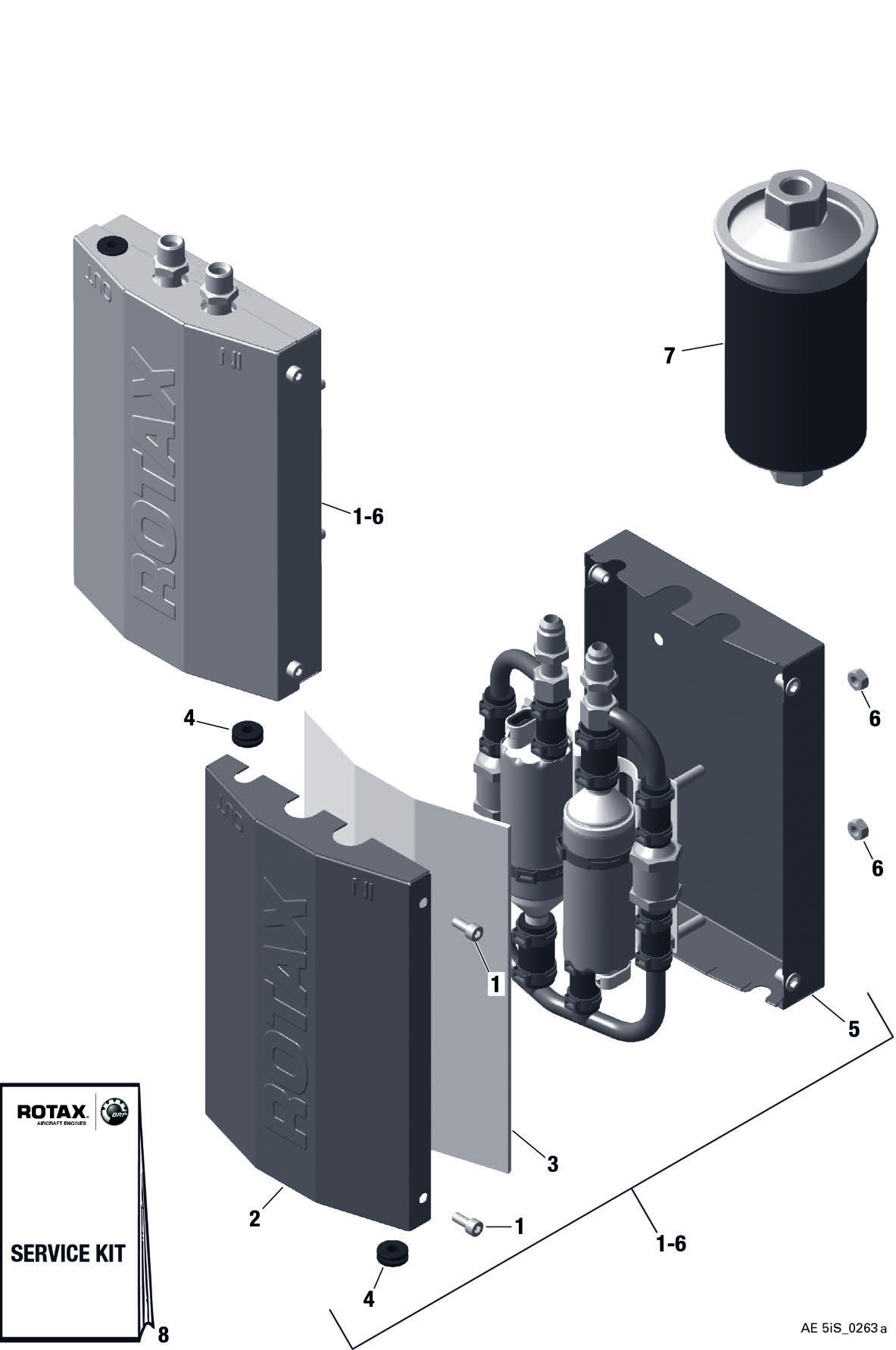

fig. 73-10-00-d
FUEL PUMP ASSY. For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1–6a | 889697 | Fuel Pump Assy - Unf | 8003000 | Add to Cart |
| 1–6b | 889699 | Fuel Pump Assy. Metric | 8011100 | Add to Cart |
| 1 | 640542 | Allen Screw M5x12 Din 912 | 320 | Add to Cart |
| 2 | 911790 | Cover | 225300 | Add to Cart |
| 3 | 975055 | Heat Protection Mat | 32100 | Add to Cart |
| 4 | 201160 | Rubber Grommet | 6400 | Add to Cart |
| 5 | 911700 | Housing | 232300 | Add to Cart |
| 6 | 242032 | Hex.nut Bm6 | 320 | Add to Cart |
| 7 | 874060 | Fuel Filter | 150700 | Add to Cart |
| 8 | 889537 | Fuel Pump Service Kit | 402900 | Add to Cart |
