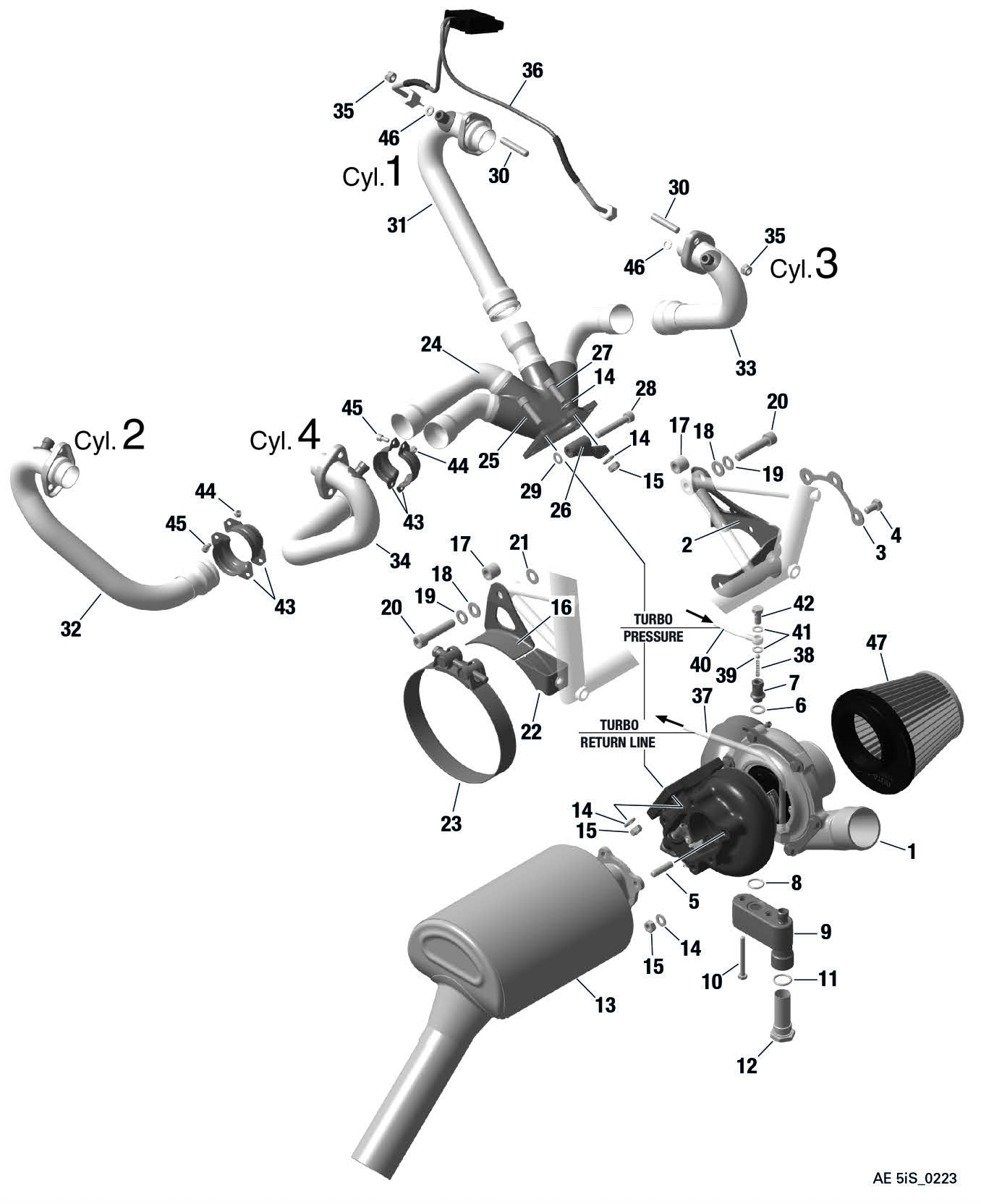

fig. 78-10-00

EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1 0 Add to Cart
2 851296 Turbocharger Bracket 136700 Add to Cart
3 851305 Reinforcement Sheet 19100 Add to Cart
4 940583 Hex. Screw M8x16 Stainless Steel 2000 Add to Cart
5 940173 Stud M8x19,5/13 4800 Add to Cart
6 250646 Gasket A 12x18-cu Din 7603 430 (1) Add to Cart
7 956489 Valve Housing 143700 Add to Cart
8 430225 O-ring 15,9-2,3 1700 Add to Cart
9 656770 Oil Sump Assy 516600 Add to Cart
10 640600 Hex Bolt, M6x55 13000 (1) Add to Cart
11 250057 O-ring Din 3771-18x2,5-n, Fpm 75 550 (1) Add to Cart
12 640860 Plug Screw Assy M22 X 1.5 145400 Add to Cart
13 979475 Muffler Assy. 2832400 Add to Cart
14 250313 Washer 8,4 Stainless Steel 300 Add to Cart
15 242203 Hex.nut M8 Stainless Steel 810 Add to Cart
16 851680 Exhaust Bracket 87000 Add to Cart
17 0 Add to Cart
18 0 Add to Cart
19 0 Add to Cart
20 0 Add to Cart
21 0 Add to Cart
22 0 Add to Cart
23 851445 Clamp 140-148 225900 Add to Cart
24 979563 Exhaust Manifold 1937300 (1) Add to Cart
25 840993 Allen Screw M8x30 2900 Add to Cart
26 953306 Manifold Bracket Assy. 530000 Add to Cart
27 240073 Bolt M8x20 S/s 1200 Add to Cart
28 440107 Allen Screw M8x50 Din 912 2900 Add to Cart
29 926400 Washer 8,4/15/0,5 3900 Add to Cart
29 926401 Washer 8,4/15/1 4300 Add to Cart
29 926402 Washer 8,4/15/1,5 4600 Add to Cart
30 940368 Stud M8x23/20 2900 (1) Add to Cart
31 0 Add to Cart
32 0 Add to Cart
33 0 Add to Cart
34 0 Add to Cart
35 0 Add to Cart
36 866264 Temperature Sensor 2029600 (1) Add to Cart
37 0 Add to Cart
38 239131 Compression Spring 22,0 2400 Add to Cart
39 232441 Ball 5,556 Mm 1200 (1) Add to Cart
40 0 Add to Cart
41 950141 Gasket Ring A 8x13 Din 7603 330 Add to Cart
42 840730 Banjo Bolt M8x1x17 84100 Add to Cart
43 979570 Exhaust Pipe Clamp 49800 Add to Cart
44 901442 Hex Nut Iso 7042 - M5 - A2 460 Add to Cart
45 240153 Allen Screw M5x10 Iso 4762-a2=70 460 Add to Cart
46 244213 Washer 6,4 300 Add to Cart
