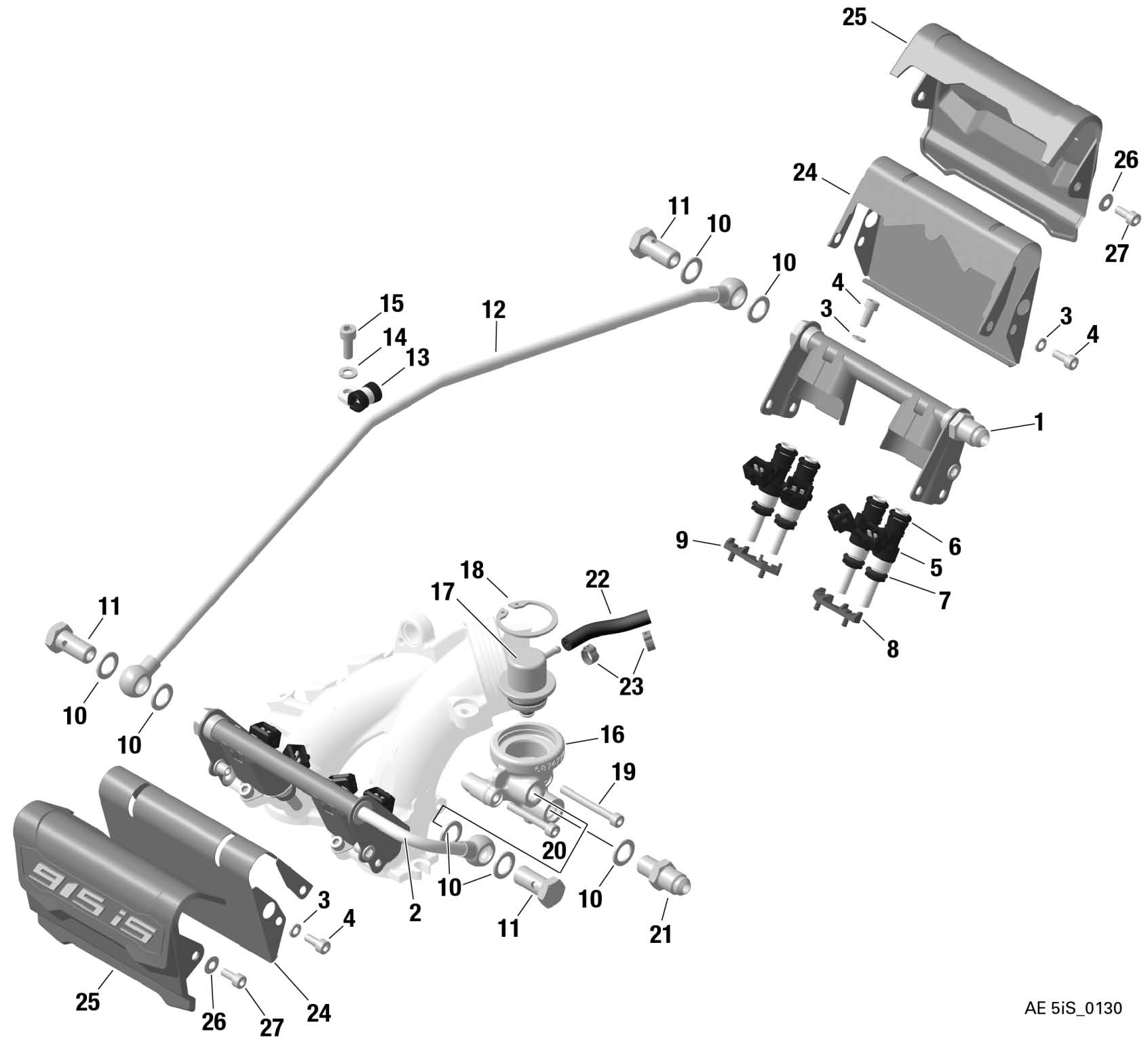

fig. 73-10-00-c
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 874795 | Fuel Rail Right - Unf | 505800 | Add to Cart |
| 2 | 874792 | 874 792 Use 874 797 | 0 | Add to Cart |
| 3 | 945830 | Lock Washer A5 | 200 | Add to Cart |
| 4 | 640542 | Allen Screw M5x12 Din 912 | 200 | Add to Cart |
| 5–7 | 874780 | Fuel Injector | 350600 | Add to Cart |
| 6 | 831060 | O-ring 7,52x3,51 | 9700 | Add to Cart |
| 7 | 831050 | O-ring 8,54x3,1 Viton B70 | 9700 | Add to Cart |
| 8 | 860042 | Damper Left | 4300 | Add to Cart |
| 9 | 860040 | Damper Right | 4300 | Add to Cart |
| 10 | 250646 | Gasket A 12x18-cu Din 7603 | 330 | Add to Cart |
| 11 | 641541 | Banjo Bolt - Din 7643 - 8 - 3 | 27000 | Add to Cart |
| 12 | 874802 | Fuel Hose Assy. | 302600 | Add to Cart |
| 13 | 853412 | Cable Clamp #8 | 3000 | Add to Cart |
| 14 | 945831 | Lock Washer A6 Din 128 | 200 | Add to Cart |
| 15 | 241239 | Allen Screw M6x16 | 3600 | Add to Cart |
| 16 | 874770 | Pressure Regulator Housing | 192600 | Add to Cart |
| 17 | 889262 | Fuel Pressure Regulator Assy. | 579400 | Add to Cart |
| 18 | 845650 | Retaining Ring 36x1,5 | 1400 | Add to Cart |
| 19 | 941792 | Allen Screw M5x45 | 1100 | Add to Cart |
| 20 | 841502 | Allen Screw M5x35 | 550 | Add to Cart |
| 21 | 840700 | Adapter 9/16 Unf/m12x1,5 | 148100 | Add to Cart |
| 22 | 960631 | Tube 60 +/-3 Mm | 13600 | Add to Cart |
| 23 | 853653 | 1 Ear Clmap 8.3-10mm | 2200 | Add to Cart |
| 24 | 975090 | Heat Shield | 16500 | Add to Cart |
| 25 | 975065 | Covering Fuel Rail | 37200 | Add to Cart |
| 26 | 939445 | Spring Washer 12x5.2x0.5 | 2200 | Add to Cart |
| 27 | 640542 | Allen Screw M5x12 Din 912 | 200 | Add to Cart |
