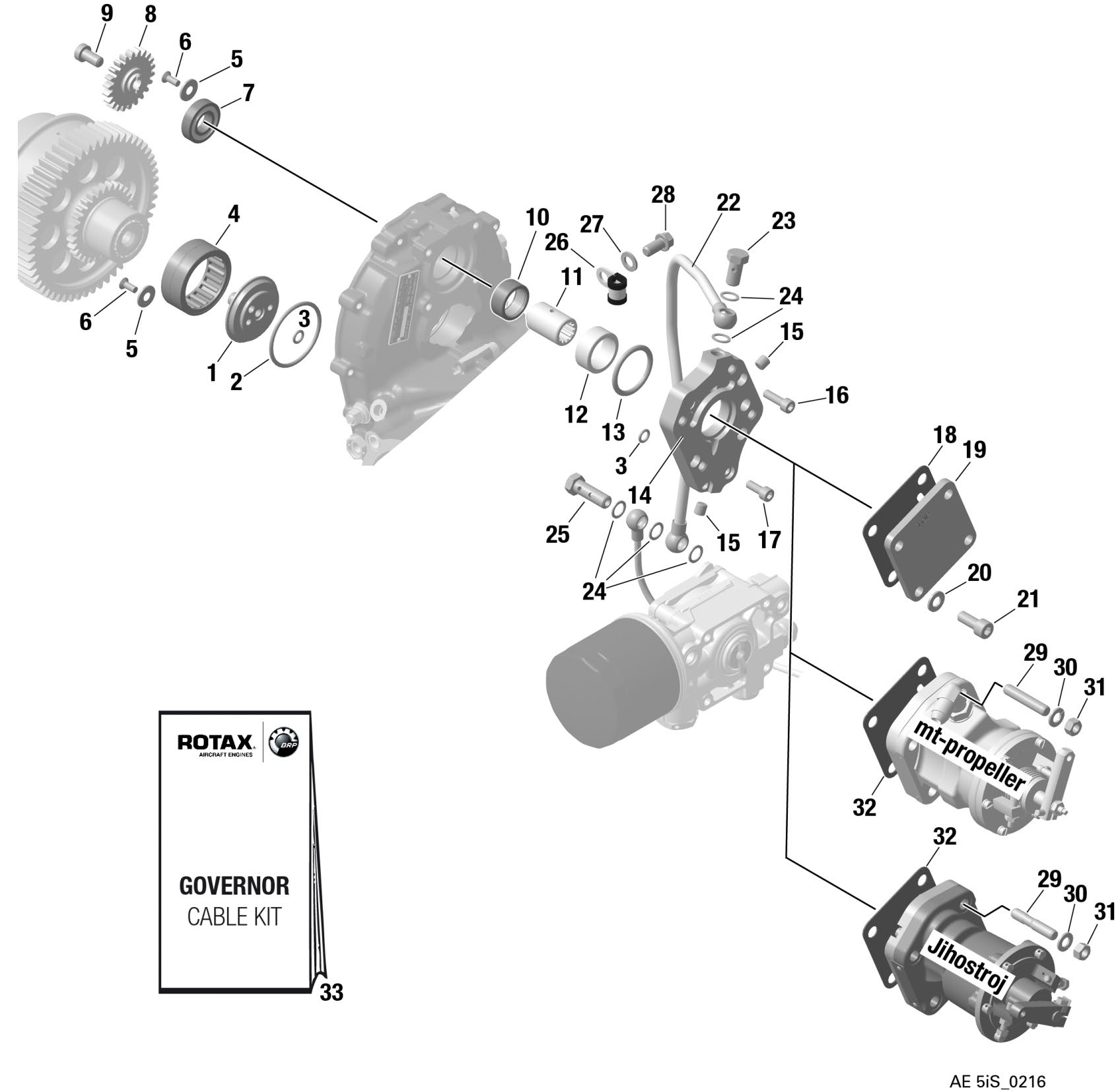

fig. 61-20-00
HYDR. GOVERNOR FOR CONSTANT SPEED PROPELLER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 810310 | Oil Inlet Flange | 526400 | Add to Cart |
| 2 | 430175 | O-ring 46x3 | 5600 | Add to Cart |
| 3 | 830415 | O-ring 7x2 | 1600 | Add to Cart |
| 4 | 832952 | Needle Bearing Rna 49/32 | 1170800 | Add to Cart |
| 5 | 227280 | Thrust Washer | 3100 | Add to Cart |
| 6 | 940316 | Countersunk Screw M5x12 | 760 | Add to Cart |
| 7 | 832363 | Ball Bearing 16002 | 591300 | Add to Cart |
| 8 | 834245 | Vacuum Pump Gear 22 T., | 470500 | Add to Cart |
| 9 | 941522 | Allen Screw M8x16 | 1300 | Add to Cart |
| 10 | 232925 | Needle Sleeve 22x28x12 | 32600 | Add to Cart |
| 11 | 847773 | Drive Sleeve | 1131600 | Add to Cart |
| 12 | 847802 | Spacer 25/31,95/13 | 124300 | Add to Cart |
| 13 | 950380 | O-ring 32x4 | 6600 | Add to Cart |
| 14 | 810070 | Governor Flange | 834900 | Add to Cart |
| 15 | 941611 | Screw Plug M8x1 | 5600 | Add to Cart |
| 16 | 241935 | Allen Screw M6x20 | 760 | Add to Cart |
| 17 | 241237 | Allen Screw M6x16 | 260 | Add to Cart |
| 18 | 931770 | Gasket | 9700 | Add to Cart |
| 19 | 926231 | Cover | 311900 | Add to Cart |
| 20 | 250315 | Washer 8,4 | 260 | Add to Cart |
| 21 | 240072 | Allen Screw M8x20 | 540 | Add to Cart |
| 22 | 956460 | Pressure Oil Line Assy., | 551800 | Add to Cart |
| 23 | 241073 | Banjo Bolt M10x1x19 | 100100 | Add to Cart |
| 24 | 230150 | Gasket Ring 10x14 A Din 7603 | 260 | Add to Cart |
| 25 | 940873 | 940 873 Use 241 072 | 0 | Add to Cart |
| 26 | 853418 | Cable Clamp | 42600 | Add to Cart |
| 27 | 944131 | Washer 8 Mm | 1100 | Add to Cart |
| 28 | 440854 | Hex/torx-flange Screw M8x16 | 2100 | Add to Cart |
| 29 | 840711 | Stud M8 X 21 | 52900 | Add to Cart |
| 30 | 945832 | Lock Washer A8 | 260 | Add to Cart |
| 31 | 942674 | Hex. Nut M8 (ws 11mm) | 5900 | Add to Cart |
| 32 | 931372 | Gasket | 571900 | Add to Cart |
| 33 | 0 | Add to Cart | ||
| 0 | Add to Cart |
