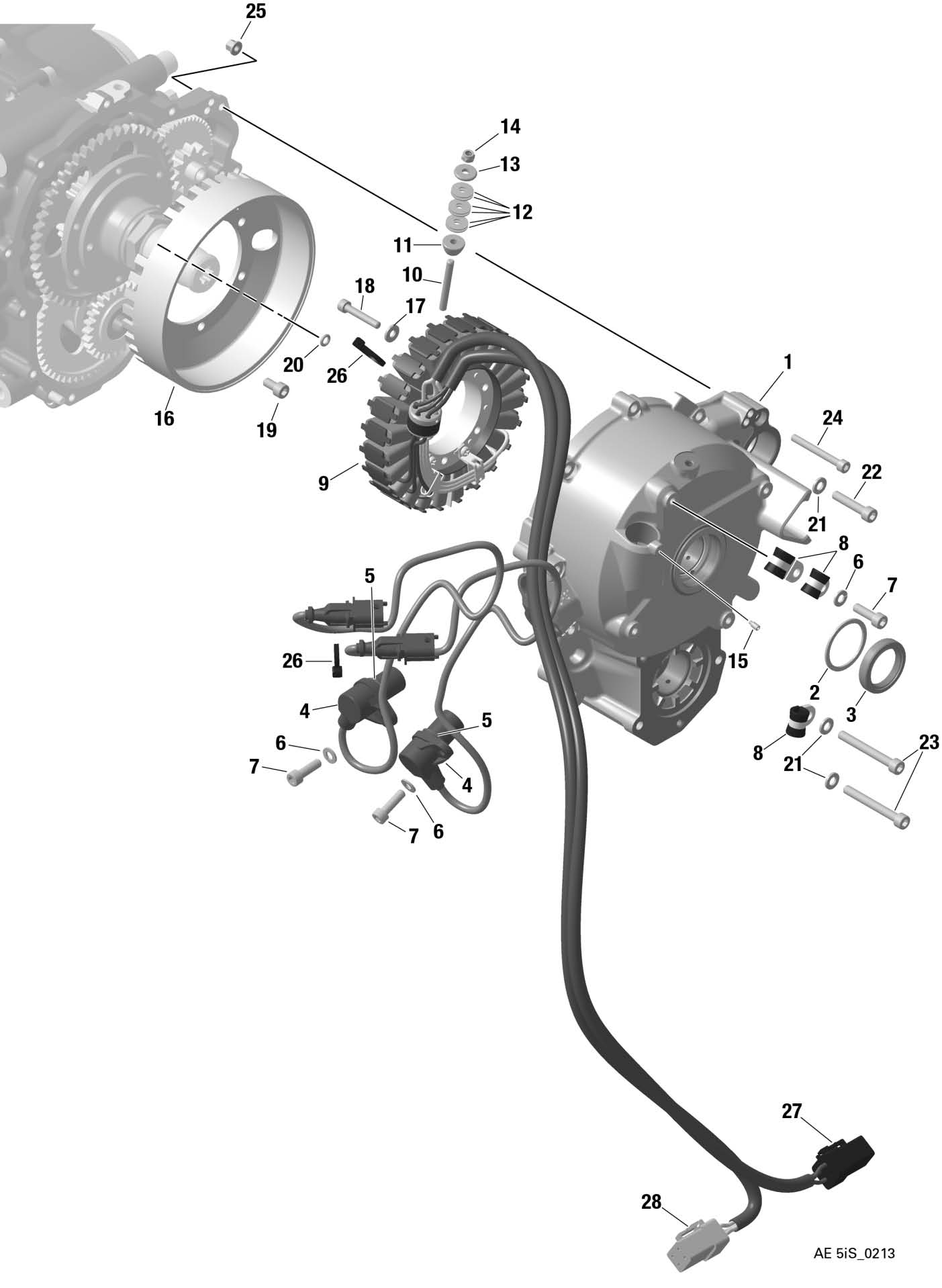

fig. 24-20-00
IGNITION HOUSING, STATOR, CRANKSHAFT POSITION SENSOR For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 912247 | Ignition Housing Assy. | 2492900 | Add to Cart |
| 2 | 827220 | Washer 32/38/1,5 | 27700 | Add to Cart |
| 3 | 230428 | Oil Seal Gpre 28x38x7 Fkm | 10600 | Add to Cart |
| 4-5 | 966572 | Crankshaft Position Sensor | 635900 | Add to Cart |
| 5 | 431580 | O-ring 17,17x1,78 Fpm 70 | 12600 | Add to Cart |
| 1 | 945831 | Lock Washer A6 Din 128 | 270 (1) | Add to Cart |
| 7 | 241935 | Allen Screw M6x20 | 710 (1) | Add to Cart |
| 8 | 853412 | Cable Clamp #8 | 3900 | Add to Cart |
| 9 | 685063 | Stator Assy. | 2205900 | Add to Cart |
| 10 | 840792 | Stud M5x44 | 101400 | Add to Cart |
| 11 | 947510 | Distance Sleeve | 63700 | Add to Cart |
| 12 | 938080 | Disk Spring 15x5,2x0,7 | 970 | Add to Cart |
| 13 | 827240 | Washer 5,1/15,5/2,5 | 53300 | Add to Cart |
| 14 | 842033 | Lock Nut M5 | 270 | Add to Cart |
| 15 | 840820 | Slotted Spring Pin 2.5x10 | 270 | Add to Cart |
| 16 | 685072 | Magneto Flywheel Assy. | 1284500 | Add to Cart |
| 17 | 827801 | Washer A 5,5 | 270 (1) | Add to Cart |
| 18 | 940882 | Allen Screw M5x30 | 710 (1) | Add to Cart |
| 19 | 840036 | Allen Screw M6x12 Din 912 | 1200 | Add to Cart |
| 20 | 0 | Add to Cart | ||
| 21 | 827962 | Washer 6,4 Din 125 | 300 (1) | Add to Cart |
| 22 | 840888 | Allen Screw M6x30 Din 912 | 710 (1) | Add to Cart |
| 23 | 241762 | Allen Screw M6x50 | 1200 (1) | Add to Cart |
| 24 | 941792 | Allen Screw M5x45 | 1500 (1) | Add to Cart |
| 25 | 942311 | Hex. Nut M5 | 41500 | Add to Cart |
| 26 | 866714 | Tie Wrap 142x3,2 Mm | 110 | Add to Cart |
