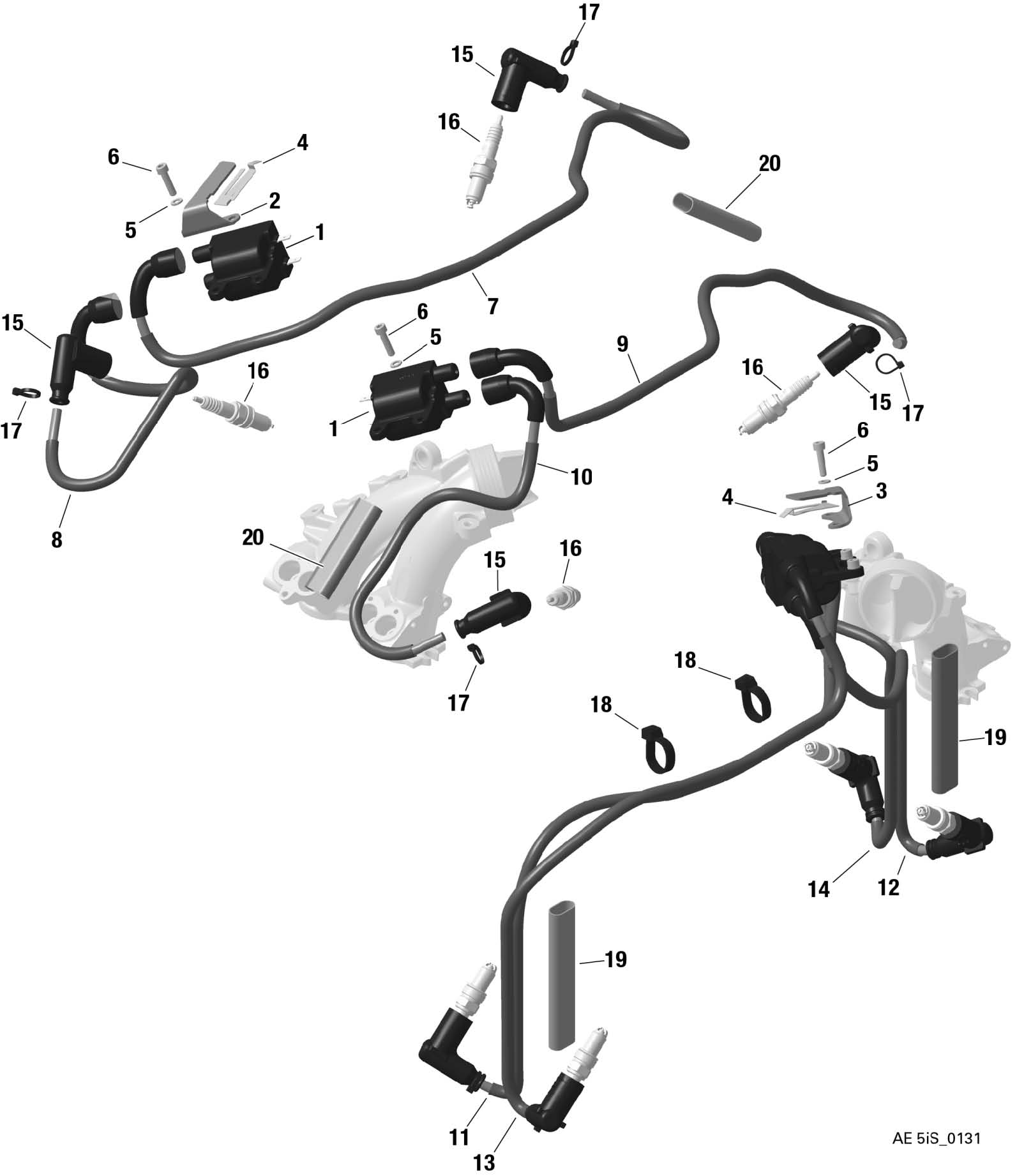

fig. 74-20-00
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 665613 | Double Ignition Coil | 437200 | Add to Cart |
| 2 | 951490 | Connector Bracket | 12500 | Add to Cart |
| 3 | 951490 | Connector Bracket | 12500 | Add to Cart |
| 4 | 251685 | Spring Hook | 44900 | Add to Cart |
| 5 | 945830 | Lock Washer A5 | 310 | Add to Cart |
| 6 | 441341 | Allen Screw M5x20 Din 912 | 3300 | Add to Cart |
| 7–14 | 864688 | Ignition Cable Set | 901300 | Add to Cart |
| 15 | 265249 | Spark Plug Connector | 117400 | Add to Cart |
| 16 | 297656 | Spark Plug 12 | 79500 | Add to Cart |
| 17 | 866718 | Tie Wrap 94x2,5 Mm | 280 | Add to Cart |
| 18 | 866716 | Clamp | 850 | Add to Cart |
| 19 | 860734 | Glass Fiber-silicon Sheating 120 | 24300 | Add to Cart |
| 20 | 860736 | Glass Fiber-silicon Sheating 75 | 10000 | Add to Cart |
